1SAE661111R0140
Product type: ESB100-40N-01

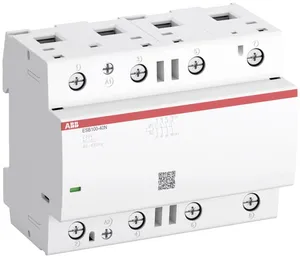

Installationsschütz 4S/0Ö, 24 V AC/DC
Description
4-polige Schütze ESB100-40N mit 108 mm Baubreite steuern 3-phasige Lasten bis 100 A und stehen in unterschiedlichen Spulenspannungen zur Verfügung. Sie schalten elektrische Heizgeräte, Warmwasserbereiter, ebenso wie Beleuchtungen. Durch eine integrierte Spulenbeschaltung arbeiten sie sowohl mit AC- als auch mit DC-Steuerspannungen. Die Geräte sind deshalb absolut brummfrei und leise beim Schalten. Sie können ohne Abstand nebeneinander angereiht werden. Ein als Zubehör linksseitig anbaubarer Hilfsschalter ergänzt das Sortiment. ESB100-40N haben Installationsdesign und erfüllen u.a. die Haushaltsnorm EN61095. Sie sind daher besonders geeignet für den Verteilereinbau.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Installation Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAE661111R0140.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.81 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | DE |
| Dimensions (WxHxD) | 0.108x0.085x0.065 m |
| EAN code | 4013614533129 |
| Product group | AQ |
| eclass | V11.0 : 27142308 |
| etim 5 | EC001653 - Installation contactor for distribution board |
| etim 6 | EC001653 - Installation contactor for distribution board |
| etim 7 | EC001653 - Installation contactor for distribution board |
| etim 8 | EC001653 - Installation contactor for distribution board |
| unspsc | 39121529 |
| standards | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 61095UL 60947-1UL 60947-4-1 |
| rohs status | Following EU Directive 2011/65/EU |
| cb certificate | https://library.abb.com/d/1SAA920008-2001 |
| nf certificate | https://library.abb.com/d/1SAA920001-1202 |
| ul certificate | https://library.abb.com/d/E191658-19960301 |
| abs certificate | https://library.abb.com/d/1SAA920000-0101 |
| cqc certificate | https://library.abb.com/d/CQC2018010304057354, https://library.abb.com/d/CQC2018010304057345 |
| dnv certificate | https://library.abb.com/d/1SAA920000-0306 |
| eac certificate | https://library.abb.com/d/1SAA920001-2702 |
| number of poles | 4 |
| pollution degree | 3 |
| rina certificate | https://library.abb.com/d/1SAA920000-0801 |
| rmrs certificate | https://library.abb.com/d/1SAA920000-0705 |
| rohs information | https://library.abb.com/d/1SAD938506-0302 |
| e-number (sweden) | 3210576 |
| tightening torque | Control Circuit 0.9 N·mMain Circuit 3 N·m |
| e-number (finland) | 3707597 |
| rated frequency (f) | Control Circuit 400 HzControl Circuit 50 HzControl Circuit 60 HzControl Circuit DCMain Circuit 50 HzMain Circuit 60 HzMain Circuit DC |
| degree of protection | IP20 |
| electrical durability | AC-1 (NO) 70000 cycleAC-7a (NO) 70000 cycle |
| mechanical durability | 1000000 cycle |
| wire stripping length | Control Circuit 7 mmMain Circuit 15 mm |
| ambient air temperature | Operation -25 ... +55 °CStorage -40 ... +80 °C |
| recommended screw driver | Control Circuit Pozidriv 1Main Circuit Pozidriv 2 |
| tightening torque ul/csa | Control Circuit 8 in·lbMain Circuit 27 in·lb |
| environmental information | https://library.abb.com/d/1SAC200066H0009 |
| rated operational voltage | Main Circuit 220 V DCMain Circuit 400 V AC |
| number of main contacts nc | 0 |
| number of main contacts no | 4 |
| object classification code | Q |
| rated insulation voltage (ui) | 500 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938506-0302 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001315, https://library.abb.com/d/2020980304001316 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Ferrule 1x 10 ... 35 mm2Flexible with Insulated Ferrule 1x 10 ... 35 mm2Flexible 1x 10 ... 35 mm2Rigid 1x 10 ... 50 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938501-1302 |
| maximum operating voltage ul/csa | Main Circuit 480 V AC |
| rated operational power ac-1 (pe) | (230 V) Single Phase, NO 23 kW(400 V) Three Phase, NO 69.3 kW |
| idea granular category code (igcc) | 4759 >> Installation contactor for distribution board |
| rated control circuit voltage (uc) | 24 V |
| rated operational power ac-7a (pe) | (230 V) Single Phase, NO 23 kW |
| connecting capacity control circuit | Flexible with Ferrule 1x 1 ... 2.5 mm2Flexible with Ferrule 2x 0.75 ... 1.5 mm2Flexible with Insulated Ferrule 1x 1 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1 mm2Flexible 1x 1 ... 2.5 mm2Flexible 2x 1 ... 1.5 mm2Rigid 1x 1 ... 4 mm2Rigid 2x 1 ... 2.5 mm2 |
| rated operational current ac-1 (ie) | (NO) 100 A |
| width in number of modular spacings | 6 |
| rated operational current ac-7a (ie) | (NO) 100 A |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| connecting capacity main circuit ul/csa | Solid 8-0 AWGStranded 8-0 AWG |
| connecting capacity control circuit ul/csa | Solid 16-10 AWGStranded 16-10 AWG |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 15g |
