ABB

1SAJ929200R0120

Product type: CEM11-FBP.120

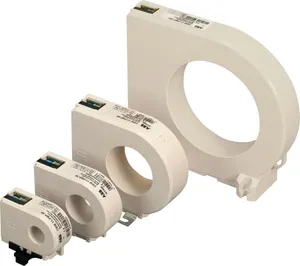

CEM11-FBP.120 Erdschlusswächter 120 mm Ø, Einstellbereich 0.24 ...13.6 A

Datasheet

Description

FBP FieldBusPlug Erdschlusswächter CEM11-FBP.120 zum Einsatz mit dem Universal Motor Controler UMC100-FBP. Bohrungsdurchmesser 120mm. Erdschlussströme mA 300, 2000, 4000, 5600, 8000, 9600, 12000, 13600.

Low Voltage Products and Systems
Control Products
Motor Controllers
Universal Motor Controllers Accessories

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAJ929200R0120.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.94 KG / psc.
Commodity number	85043129
Country of origin	DE
Dimensions (WxHxD)	0.21x0.038x0.19 m
EAN code	4013614398421
Product group	EB
cn8	8504 31 29
eclass	V11.0 : 27242608
etim 7	EC001604 - Fieldbus, decentr. periphery - communication module
etim 8	EC001604 - Fieldbus, decentr. periphery - communication module
standards	IEC/EN 60947-1IEC/EN 60947-4-1
power loss	Approximately 0.2 W
rohs status	Following EU Directive 2011/65/EU
suitable for	UMC100-FBPUMC100.3
mounting type	Screw
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
atex certificate	https://library.abb.com/d/No
rohs information	https://library.abb.com/d/1SVD981041-0001
mounting position	Any
tightening torque	Auxiliary Circuit 0.6 ... 1 N·mControl Circuit 0.6 ... 1 N·m
e-number (finland)	3709077
eplan catalog tree	Electrical engineering / Protection devices / Motor overload switch
connecting capacity	1x 0.75-1.5 mm2
rated frequency (f)	Main Circuit 50 / 60 Hz
degree of protection	IP20
mounting on din rail	No
wire stripping length	7 mm
suitable for isolation	Yes
fieldbus interface type	none
recommended screw driver	Pozidriv 1
connecting capacity ul/csa	Flexible with Ferrule 1x 18-16 AWGRigid 1x 18-16 AWG
object classification code	B
suitable for product class	Universal Motor Controllers
declaration of conformity - ce	https://library.abb.com/d/1SVD981041-00
regulatory compliance mark (rcm)	No
data sheet, technical information	https://library.abb.com/d/2CDC135010D0204
rated control supply voltage (us)	24 V DC
