| Weight | 0.013 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | BG |
| Dimensions (WxHxD) | 148x50x36 mm |
| EAN code | 4013614502644 |
| Product group | |
| eclass | V11.0 : 27371302 |
| etim 5 | EC000041 - Auxiliary contact block |
| etim 6 | EC000041 - Auxiliary contact block |
| etim 7 | EC000041 - Auxiliary contact block |
| etim 8 | EC000041 - Auxiliary contact block |
| unspsc | 39121522 |
| standards | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-5-1UL 508UL 60947-1UL 60947-5-1 |
| rohs status | Following EU Directive 2011/65/EU |

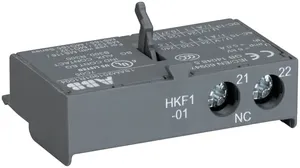

| product name | Auxiliary Contact |
| suitable for | MS116MS132MO132MS165MO165 |
| terminal type | Screw Terminals |
| accessory type | Auxiliary Contact |
| cb certificate | https://library.abb.com/d/1SAA963003-2002 |
| lr certificate | https://library.abb.com/d/1SAA963001-0501, https://library.abb.com/d/1SAA963001-0502, https://library.abb.com/d/1SAA963000-0505, https://library.abb.com/d/1SAA918001-0501 |
| ul certificate | https://library.abb.com/d/UL_E137861 |
| accessory group | Electrical |
| cqc certificate | https://library.abb.com/d/CQC2017010304032779 |
| rina certificate | https://library.abb.com/d/1SAA963002-0802 |
| rohs information | https://library.abb.com/d/1SAD938504-0196 |
| tightening torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| rated frequency (f) | Auxiliary Circuit DCAuxiliary Circuit 50 HzAuxiliary Circuit 60 Hz |
| degree of protection | IP20 |
| contact rating ul/csa | B300R300 |
| electrical durability | 100000 cycle |
| mechanical durability | 100000 cycle |
| wire stripping length | Auxiliary Circuit 8 mm |
| ambient air temperature | Operation -25 ... +60 °CStorage -50 ... +80 °C |
| recommended screw driver | M3Pozidriv 2 |
| tightening torque ul/csa | Auxiliary Circuit 7 in·lb |
| rated operational voltage | 250 V |
| object classification code | Q |
| rated insulation voltage (ui) | 250 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938508-0197, https://library.abb.com/d/1SAD938510-0188, https://library.abb.com/d/1SAD938519-0125, https://library.abb.com/d/1SAD938523-0060, https://library.abb.com/d/1SAD938504-0196, https://library.abb.com/d/1SAD938507-0190, https://library.abb.com/d/1SAD938504-0198, https://library.abb.com/d/1SAD938506-0191, https://library.abb.com/d/1SAD938510-0183 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001251 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 0 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938502-1060, https://library.abb.com/d/1SAD938503-1125, https://library.abb.com/d/1SAD938503-1188, https://library.abb.com/d/1SAD938503-1197 |
| maximum operating voltage ul/csa | Main Circuit 250 V AC |
| data sheet, technical information | https://library.abb.com/d/1SBC100192C02-- |
| idea granular category code (igcc) | 4742 >> Electrical contacts |
| rated operational current ac-15 (ie) | (24 V) 3 A(120 V) 3 A(240 V) 1.5 A |
| rated operational current dc-13 (ie) | (24 V) 1 A(125 V) 0.27 A(250 V) 0.11 A |
| connecting capacity auxiliary circuit | Flexible with Ferrule 1/2x 0.75 ... 1.5 mm2Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm2Flexible 1/2x 0.75 ... 1.5 mm2Rigid 1/2x 1.0 ... 2.5 mm2 |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kV |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 25g |
| connecting capacity auxiliary circuit ul/csa | Flexible 1/2x 16-14 AWGStranded 1/2x 16-14 AWG |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 3 ... 150 Hz |
