| Weight | 0.035 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | BG |
| Dimensions (WxHxD) | 25x93x80 mm |
| EAN code | 4013614523342 |
| Product group | |
| eclass | V11.0 : 27371302 |
| etim 5 | EC000041 - Auxiliary contact block |
| etim 6 | EC000041 - Auxiliary contact block |
| etim 7 | EC000041 - Auxiliary contact block |
| etim 8 | EC000041 - Auxiliary contact block |
| unspsc | 39121522 |
| standards | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-5-1UL 508UL 60947-1UL 60947-5-1 |
| rohs status | Following EU Directive 2011/65/EU |

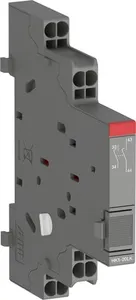

| product name | Auxiliary Contact |
| suitable for | MS116MS132MO132 |
| terminal type | Push-in Spring Terminals |
| accessory type | Auxiliary Contact |
| cb certificate | https://library.abb.com/d/1SAA963004-2002 |
| abs certificate | https://library.abb.com/d/1SAA963001-0101 |
| accessory group | Electrical |
| cqc certificate | https://library.abb.com/d/CQC2017010304032778 |
| marketing video | https://library.abb.com/d/2CDC131130V0201 |
| rina certificate | https://library.abb.com/d/1SAA963002-0802 |
| rohs information | https://library.abb.com/d/1SAD938516-0125 |
| e-number (finland) | 3707827 |
| degree of protection | IP20 |
| contact rating ul/csa | B600Q600 |
| electrical durability | 100000 cycle |
| mechanical durability | 100000 cycle |
| wire stripping length | Auxiliary Circuit 10 mm |
| ambient air temperature | Operation -25 ... +60 °CStorage -50 ... +80 °C |
| rated operational voltage | 690 V AC600 V DCMain Circuit 690 V |
| object classification code | Q |
| suitable for product class | Manual Motor Starter |
| rated insulation voltage (ui) | 690 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD101100-3410 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001252 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD201100-3410 |
| maximum operating voltage ul/csa | Main Circuit 600 V AC |
| data sheet, technical information | https://library.abb.com/d/1SBC100212C0201 |
| idea granular category code (igcc) | 4742 >> Electrical contacts |
| rated operational current ac-15 (ie) | (24 V) 6 A(240 V) 4 A(690 V) 1 A(380 / 400 V) 3 A |
| rated operational current dc-13 (ie) | (24 V) 2 A(125 V) 0.55 A(250 V) 0.27 A(440 V) 0.15 A(600 V) 0.15 A |
| connecting capacity auxiliary circuit | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.5 ... 1.5 mm2Flexible 1/2x 0.5 ... 2.5 mm2Rigid 1/2x 0.5 ... 2.5 mm2 |
| number of auxiliary contacts co (spdt) | 0 |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kV |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 25g |
| connecting capacity auxiliary circuit ul/csa | Rigid 1/2x 20-14 AWGStranded 1/2x 20-14 AWG |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 3 ... 150 Hz |
