ABB

1SAM201909R1021

Product type: MSAH1

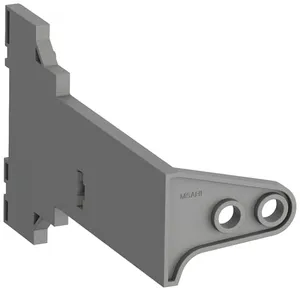

MSAH1 Shaft Supporter suitable for MS116, MS132/MO132

Datasheet

RoHS Compliant

Description

The shaft supporter MSAH1 can be used in door coupling solutions for operating manual motor starters MS116 or MS132 in the back of a switch cabinet from outside. It is used for supporting the shaft OXS6 in the extension of the handle (MSHD). It is mandatory for the usage of shafts longer than 130 mm (max shaft length: 180 mm). MSAH1

Low Voltage Products and Systems
Circuit Breakers
Manual Motor Starters
Low Voltage Products and Systems
Control Products
Manual Motor Starters
Manual Motor Starters

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAM201909R1021.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.035 KG / psc.
Commodity number	39269097
Country of origin	DE
Dimensions (WxHxD)	150x220x90 mm
EAN code	4013614483615
Product group
eclass	V11.0 : 27371392
etim 4	EC002498 - Accessories for low-voltage switch technology
etim 5	EC002498 - Accessories for low-voltage switch technology
etim 6	EC002498 - Accessories for low-voltage switch technology
etim 7	EC002498 - Accessories for low-voltage switch technology
etim 8	EC002498 - Accessories/spare parts for low-voltage switch technology
unspsc	39122221
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
product name	Shaft Supporter
suitable for	MS116MS132MO132
accessory type	Shaft Supporter
shaft diameter	6x6 mm
accessory group	Mechanical
rohs information	https://library.abb.com/d/1SAA963001-4407
dimension diagram	https://library.abb.com/d/1SAM200437F0001, https://library.abb.com/d/1SAM200438F0001, https://library.abb.com/d/1SAM300414F0001, https://library.abb.com/d/1SAM300415F0001
object classification code	X
suitable for product class	Manual Motor Starter
declaration of conformity - ce	https://library.abb.com/d/1SAD938508-0197, https://library.abb.com/d/1SAD938510-0188, https://library.abb.com/d/1SAD938519-0125, https://library.abb.com/d/1SAD938523-0060, https://library.abb.com/d/1SAD938504-0196, https://library.abb.com/d/1SAD938510-0183
declaration of conformity - ukca	https://library.abb.com/d/1SAD938502-1060, https://library.abb.com/d/1SAD938503-1125, https://library.abb.com/d/1SAD938503-1188, https://library.abb.com/d/1SAD938503-1197
data sheet, technical information	https://library.abb.com/d/1SBC100192C02--
idea granular category code (igcc)	5219 >> Switch part or accessory
