| Weight | 0.1 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | DE |
| Dimensions (WxHxD) | 93x80x25 mm |
| EAN code | 4013614343308 |
| Product group | |
| eclass | V11.0 : 27370418 |
| etim 4 | EC002498 - Accessories for low-voltage switch technology |
| etim 5 | EC001023 - Shunt release (for power circuit breaker) |
| etim 6 | EC001023 - Shunt release (for power circuit breaker) |
| etim 7 | EC001023 - Shunt release (for power circuit breaker) |
| etim 8 | EC001023 - Shunt release (for power circuit breaker) |
| unspsc | 39121521 |
| remarks | Please consider 15 min OFF-period after 5s ON-period.The mechanical and electrical durability of manual motor starters in combination with UA1/AA1 is reduced. Values are provided on request. |
| standards | CSA 22.2 No. 14IEC/EN 60947-1IEC/EN 60947-4-1UL 508UL 60947-1UL 60947-4-1 |
| rohs status | Following EU Directive 2002/95/EC August 18, 2005 and amendment |

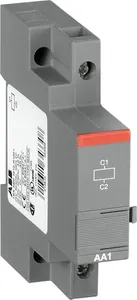

| product name | Shunt Trip |
| suitable for | MS116MS132MO132MS165MO165 |
| terminal type | Screw Terminals |
| accessory type | Shunt Trip |
| bv certificate | https://library.abb.com/d/1SAA963002-0201 |
| lr certificate | https://library.abb.com/d/1SAA963001-0502, https://library.abb.com/d/1SAA918001-0501 |
| ul certificate | https://library.abb.com/d/UL_E137861 |
| abs certificate | https://library.abb.com/d/1SAA963001-0101 |
| accessory group | Electrical |
| cul certificate | https://library.abb.com/d/cUL_E137861 |
| rina certificate | https://library.abb.com/d/1SAA963002-0802 |
| rohs information | https://library.abb.com/d/1SAD938504-0196, https://library.abb.com/d/1SAD938507-0190, https://library.abb.com/d/1SAD938504-0198, https://library.abb.com/d/1SAD938506-0197, https://library.abb.com/d/1SAD938506-0191, https://library.abb.com/d/1SAD938508-0188, https://library.abb.com/d/1SAD938509-0183, https://library.abb.com/d/1SAD938516-0125, https://library.abb.com/d/1SAD938522-0060, https://library.abb.com/d/1SAD938503-0304 |
| tightening torque | Auxiliary Circuit 0.8 ... 1.2 N·m |
| dnv gl certificate | https://library.abb.com/d/1SAA963001-0304 |
| e-number (finland) | 3705824 |
| rated frequency (f) | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DC |
| wire stripping length | Auxiliary Circuit 10 mm |
| ambient air temperature | Operation -25 ... +60 °CStorage -50 ... +80 °C |
| recommended screw driver | Pozidriv 2 |
| tightening torque ul/csa | Auxiliary Circuit 7 in·lb |
| object classification code | Q |
| suitable for product class | Manual Motor Starter |
| rated insulation voltage (ui) | 690 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD101100-3411 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD201100-3411 |
| data sheet, technical information | https://library.abb.com/d/1SBC100192C02-- |
| rated control supply voltage (us) | (50 / 60 Hz) 20 ... 24 V(50 / 60 Hz ON-Period = 5s) 25 ... 70 V(DC ON-Period = 5s) 20 ... 70 V |
| idea granular category code (igcc) | 4879 >> Shunt release (for power circuit breaker) |
| connecting capacity auxiliary circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Flexible 1/2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 4 mm2 |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kV |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 15g |
| connecting capacity auxiliary circuit ul/csa | Flexible 1/2x 16-12 AWGStranded 1/2x 16-12 AWG |
