ABB

1SAM201920R1012

Product type: MSHD-LTY

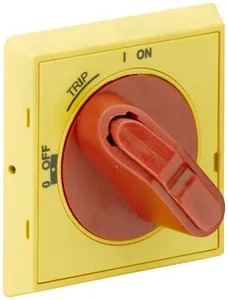

MSHD-LTY Handle, IP64, red/yellow, 3 times lockable, defeatable, 0-TRIP-I

Datasheet

RoHS Compliant

Description

Handles MSHD can be used in door coupling solutions for operating manual motor starters MS116, MS132 or MS165 in the back of a switch cabinet from outside. They are by design padlockable only in OFF-position (with max. 3 padlocks). MSHD can be used with shafts OXS6 from 6 mm up to 180 mm or driver shafts MSOX. Their degree of protection is IP64. Handles MSHD are available in yellow and black color and with or without Trip position. MSHD-LTY

Low Voltage Products and Systems
Circuit Breakers
Manual Motor Starters
Low Voltage Products and Systems
Control Products
Manual Motor Starters
Manual Motor Starters

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAM201920R1012.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.065 KG / psc.
Commodity number	85389099
Country of origin	LT
Dimensions (WxHxD)	130x170x70 mm
EAN code	4013614441844
Product group
color	Yellow / Red
eclass	V11.0 : 27370414
etim 4	EC002498 - Accessories for low-voltage switch technology
etim 5	EC000229 - Handle for power circuit breaker
etim 6	EC000229 - Handle for power circuit breaker
etim 7	EC000229 - Handle for power circuit breaker
etim 8	EC000229 - Handle for power circuit breaker
unspsc	39121521
rohs status	Following EU Directive 2002/95/EC August 18, 2005 and amendment
product name	Handles
suitable for	MS132MO132MS450MS451MS495MS496MS497MO450MO495MO496
actuator type	Rotary Handle
accessory type	Handles
shaft diameter	6x6 mm
accessory group	Mechanical
rohs information	https://library.abb.com/d/1SAD938504-0196, https://library.abb.com/d/1SAD938506-0197, https://library.abb.com/d/1SAD938508-0188, https://library.abb.com/d/1SAD938509-0183, https://library.abb.com/d/1SAD938516-0125
tightening torque	0.12 N·m
e-number (finland)	3705867
degree of protection	IP64
enclosure type ul/csa	1123R
tightening torque ul/csa	1.06 in·lb
object classification code	X
suitable for product class	Manual Motor Starter
contact position indication	ON / OFF / TRIP
declaration of conformity - ce	https://library.abb.com/d/1SAD101100-3411
declaration of conformity - ukca	https://library.abb.com/d/1SAD201100-3411
data sheet, technical information	https://library.abb.com/d/1SBC100173C0201
idea granular category code (igcc)	3038 >> Handles or knobs
