Product type: MS116-2.5

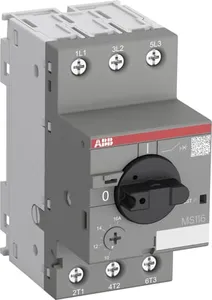

MS116-2.5 Manual Motor Starter 1.6 ... 2.5 A
RoHS Compliant
Description
The MS116-2.5 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 2.5 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory. MS116-2.5
Read More
- Low Voltage Products and Systems
- Circuit Breakers
- Manual Motor Starters
- Low Voltage Products and Systems
- Control Products
- Manual Motor Starters
- Manual Motor Starters
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAM250000R1007.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.265 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | DE |
| Dimensions (WxHxD) | 92x50x95 mm |
| EAN code | 4013614320309 |
| Product group | |
| eclass | V11.0 : 27370401 |
| etim 4 | EC000074 - Motor protective circuit-breaker |
| etim 5 | EC000074 - Motor protective circuit-breaker |
| etim 6 | EC000074 - Motor protection circuit-breaker |
| etim 7 | EC000074 - Motor protection circuit-breaker |
| etim 8 | EC000074 - Motor protection circuit-breaker |
| unspsc | 39121521 |
| standards | IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1UL 60947-1UL 60947-4-1 |
| power loss | at Rated Operating Conditions per Pole 0.7 ... 1.8 W |
| rohs status | Following EU Directive 2011/65/EU |
| actuator type | Rotary Handle |
| setting range | 1.6 ... 2.5 A |
| terminal type | Screw Terminals |
| bv certificate | https://library.abb.com/d/1SAA963000-0204 |
| cb certificate | https://library.abb.com/d/1SAA963005-2003, https://library.abb.com/d/1SAA963006-2001 |
| gl certificate | https://library.abb.com/d/1SAA963000-0402 |
| kc certificate | https://library.abb.com/d/1SAA963000-1501 |
| lr certificate | https://library.abb.com/d/1SAA963000-0505 |
| ul certificate | https://library.abb.com/d/UL_E137861 |
| abs certificate | https://library.abb.com/d/1SAA963000-0104 |
| cqc certificate | https://library.abb.com/d/CQC2011010307506570, https://library.abb.com/d/CQC2014010307744794 |
| cul certificate | https://library.abb.com/d/cUL_E137861 |
| dnv certificate | https://library.abb.com/d/1SAA963000-0304 |
| eac certificate | https://library.abb.com/d/1SAA963000-2701 |
| number of poles | 3 |
| pollution degree | 3 |
| rmrs certificate | https://library.abb.com/d/1SAA918000-0704 |
| rohs information | https://library.abb.com/d/1SAD938517-0060 |
| dimension diagram | https://library.abb.com/d/1SAM200422F0001 |
| e-number (sweden) | 3111942 |
| locked rotor amps | (200 V AC) Three Phase 15 A(208 V AC) Three Phase 15 A(220 ... 240 V AC) Three Phase 15 A(440 ... 480 V AC) Three Phase 15 A(550 ... 600 V AC) Three Phase 15 A |
| mounting position | Any; 1 ... 6 |
| tightening torque | Main Circuit 0.8 ... 1.2 N·m |
| dnv gl certificate | https://library.abb.com/d/1SAA963000-0304 |
| e-number (finland) | 3706007 |
| i2t characteristic | https://library.abb.com/d/1SAM200507F0001, https://library.abb.com/d/1SAM200507F0002, https://library.abb.com/d/1SAM200507F0003 |
| rated frequency (f) | Main Circuit 50 HzMain Circuit 60 Hz |
| degree of protection | Housing IP20Main Circuit Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| electrical durability | 100000 cycle |
| mechanical durability | 100000 cycle |
| wire stripping length | Main Circuit 9 mm |
| ambient air temperature | Around the Enclosure 0 ... +40 °COperation -25 ... +70 °COperation Compensated -25 ... +55 °CStorage -50 ... +80 °C |
| full load amps motor use | (200 V AC) Three Phase 2.5 A(208 V AC) Three Phase 2.5 A(220 ... 240 V AC) Three Phase 2.5 A(440 ... 480 V AC) Three Phase 2.5 A(550 ... 600 V AC) Three Phase 2.5 A |
| horsepower rating ul/csa | (200 V AC) Three Phase 0.5 Hp(208 V AC) Three Phase 0.5 Hp(220 ... 240 V AC) Three Phase 0.5 Hp(440 ... 480 V AC) Three Phase 1 Hp(550 ... 600 V AC) Three Phase 1.5 Hp |
| recommended screw driver | Pozidriv 2 |
| tightening torque ul/csa | Main Circuit 10 in·lb |
| environmental information | https://library.abb.com/d/1SAC200050H0009 |
| general use rating ul/csa | (600 V AC) 2.5 A |
| minimum mounting distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mmElectrical Conductive Board, Horizontal - Up to 690 V 1.5 mmElectrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 150 mm |
| rated operational voltage | Main Circuit 690 V AC |
| object classification code | F |
| contact position indication | ON / OFF |
| rated insulation voltage (ui) | 690 V |
| cut-off current characteristic | https://library.abb.com/d/1SAM200508F0001, https://library.abb.com/d/1SAM200508F0002, https://library.abb.com/d/1SAM200508F0003 |
| declaration of conformity - ce | https://library.abb.com/d/1SAD101100-3401 |
| rated operational current (ie) | 2.5 A |
| declaration of conformity - ccc | https://library.abb.com/d/2020980307003705, https://library.abb.com/d/2020980307003043 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm2Flexible 1/2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 4 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD201100-3401 |
| maximum operating voltage ul/csa | Main Circuit 600 V AC |
| data sheet, technical information | https://library.abb.com/d/2CDC131025D0201 |
| rated operational power ac-3 (pe) | (400 V) Three Phase 0.75 kW |
| time-current characteristic curve | https://library.abb.com/d/1SAM200505F0107 |
| idea granular category code (igcc) | 4845 >> 3 Pole Motor Circuit Protector Circuit Breakers |
| rated operational power ac-3e (pe) | (400 V) Three Phase 0.75 kW |
| rated operational current ac-3 (ie) | 2.5 A |
| short-circuit current rating (sccr) | Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 5 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 30 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 5 kA |
| ambient air temperature compensation | Yes |
| rated operational current ac-3e (ie) | 2.5 A |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 6 kV |
| connecting capacity main circuit ul/csa | Flexible 1/2x 16-12 AWGStranded 1/2x 16-12 AWG |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 25g |
| conventional free-air thermal current (ith) | Main Circuit 2.5 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 3 ... 150 Hz |
| rated service short-circuit breaking capacity (ics) | (230 V AC) 50 kA(400 V AC) 50 kA(440 V AC) 10 kA(500 V AC) 10 kA(690 V AC) 5 kA |
| rated ultimate short-circuit breaking capacity (icu) | (230 V AC) 75 kA(400 V AC) 75 kA(440 V AC) 30 kA(500 V AC) 20 kA(690 V AC) 10 kA |
| rated instantaneous short-circuit current setting (ii) | 31.3 A |
