| Weight | 0.177 KG / psc. |
| Commodity number | 85369010 |
| Country of origin | DE |
| Dimensions (WxHxD) | 0.2583x0.0848x0.0484 m |
| EAN code | 4013614562983 |
| Product group | |
| eclass | V11.0 : 27371306 |
| etim 5 | EC000215 - Phase busbar |
| etim 6 | EC000215 - Phase busbar |
| etim 7 | EC000215 - Phase busbar |
| etim 8 | EC000215 - Phase busbar |
| unspsc | 39121117 |
| standards | IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1 |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |

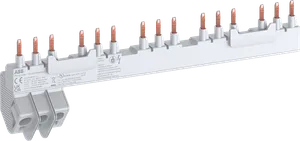

| product name | Busbar |
| suitable for | MS132-KMS132-KTMS132-KB |
| accessory type | 3-Phase Busbar |
| accessory group | Electrical |
| connection type | Pin |
| marketing video | https://library.abb.com/d/9AKK107991A4712, https://library.abb.com/d/2CDC131153V0201 |
| number of poles | 3 |
| number of phases | 3 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SAD938513-0056 |
| ampere rating ul/csa | 65 A |
| degree of protection | IP20 |
| wire stripping length | Main Circuit 16 mm |
| ambient air temperature | Operation -25 ... +70 °CStorage -50 ... +80 °C |
| recommended screw driver | Main Circuit 4 |
| rated operational voltage | 690 V AC250 V DC |
| object classification code | W |
| suitable for product class | Manual Motor Starters |
| number of mountable devices | 5 |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938515-0056, https://library.abb.com/d/1SAD938508-0197, https://library.abb.com/d/1SAD938519-0125, https://library.abb.com/d/1SAD938510-0188, https://library.abb.com/d/1SAD938523-0060 |
| rated operational current (ie) | 65 A |
| connecting capacity main circuit | Flexible with Ferrule Spring 1x 0.5 ... 16 mm2Flexible with Ferrule Push-in 1x 4 ... 16 mm2Flexible with Insulated Ferrule Spring 1x 0.5 ... 16 mm2Flexible with Insulated Ferrule Push-in 1x 4 ... 16 mm2Flexible Spring 1x 0.5 ... 16 mm2Solid Spring 1x 0.5 ... 16 mm2Solid Push-in 1x 4 ... 16 mm2Stranded Spring 1x 1.5 ... 25 mm2Stranded Push-in 1x 6 ... 25 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938502-1056, https://library.abb.com/d/1SAD938502-1060, https://library.abb.com/d/1SAD938503-1125, https://library.abb.com/d/1SAD938503-1188, https://library.abb.com/d/1SAD938503-1197 |
| maximum operating voltage ul/csa | Main Circuit 600 V AC |
| data sheet, technical information | https://library.abb.com/d/1SBC100214C0202 |
| idea granular category code (igcc) | 4378 >> Phase busbar |
| number of lateral auxiliary contacts | 1 |
| rated impulse withstand voltage (uimp) | 6 kV |
| connecting capacity main circuit ul/csa | Stranded Spring 1x 18-4 AWGStranded Push-in 1x 8-4 AWG |
| rated short-time withstand current low voltage (icw) | 100 kA |
