Product type: MS132-0.25T

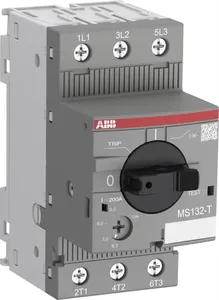

MS132-0.25T Circuit Breaker for Primary Transformer Protection 0.16 ... 0.25 A
RoHS Compliant
Description
The circuit breaker for transformer protection MS132-0.25T is a compact 45 mm width device designed to protect control transformers on the primary side. This device has a rated operational current of Ie = 0.25 A. It allows fuse-less protection against overload and short-circuit. The short-circuit current setting is fixed to 20 times the rated operational current to handle the high inrush current generated by transformers. The device allows manually connect and disconnect the transformer from the mains thanks of its built-in disconnection function. The circuit breaker for transformer protection offers a rated service short-circuit breaking capacity of Ics = 100 kA at 400 VAC and a trip class 10. Further features are temperature compensation, trip-free mechanism, rotary handle with a clear switch position indication and short circuit trip indicator. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases, shunt trips, power in-feed blocks and terminal spacers are available as accessory. MS132-0.25T
Read More
- Low Voltage Products and Systems
- Control Products
- Manual Motor Starters
- Manual Motor Starters for Special Use
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAM340000R1002.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.215 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | DE |
| Dimensions (WxHxD) | 92x50x95 mm |
| EAN code | 4013614484926 |
| Product group | |
| eclass | V11.0 : 27370409 |
| etim 4 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 5 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 6 | EC000228 - Power circuit-breaker for trafo/generator/installation prot. |
| etim 7 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| etim 8 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| unspsc | 39121601 |
| standards | IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1 |
| power loss | at Rated Operating Conditions per Pole 0.6 ... 1.5 W |
| rohs status | Following EU Directive 2011/65/EU |
| actuator type | Rotary Handle |
| setting range | 0.16 ... 0.25 A |
| terminal type | Screw Terminals |
| kc certificate | https://library.abb.com/d/1SAA963002-1502 |
| cqc certificate | https://library.abb.com/d/CQC2010010307387700 |
| cul certificate | https://library.abb.com/d/cUL_E137861 |
| cur certificate | https://library.abb.com/d/cUL_E137861 |
| number of poles | 3 |
| pollution degree | 3 |
| rmrs certificate | https://library.abb.com/d/1SAA918000-0704 |
| rohs information | https://library.abb.com/d/1SAD938503-0188 |
| culus certificate | https://library.abb.com/d/cUL_E137861 |
| dimension diagram | https://library.abb.com/d/1SAM300402F0001 |
| locked rotor amps | (120 V AC) Single Phase 1.5 A(220 ... 240 V AC) Single Phase 1.5 A |
| mounting position | 1 ... 6 |
| tightening torque | Main Circuit 0.8 ... 1.2 N·m |
| e-number (finland) | 3707266 |
| i2t characteristic | https://library.abb.com/d/1SAM300517F0001 |
| rated frequency (f) | Main Circuit 50 HzMain Circuit 60 Hz |
| ampere rating ul/csa | 0.25 A |
| degree of protection | Housing IP20Main Circuit Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| electrical durability | 50000 cycle |
| mechanical durability | 100000 cycle |
| wire stripping length | Main Circuit 9 mm |
| ambient air temperature | Around the Enclosure 0 ... +40 °COperation -25 ... +70 °COperation Compensated -25 ... +60 °CStorage -50 ... +80 °C |
| full load amps motor use | (120 V AC) Single Phase 0.25 A(220 ... 240 V AC) Single Phase 0.25 A |
| recommended screw driver | Pozidriv 2M3.5 |
| tightening torque ul/csa | Main Circuit 10 ... 12 in·lb |
| environmental information | https://library.abb.com/d/1SAC200049H0009 |
| minimum mounting distance | Electrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 9 mmOther Device Same Type, Vertical 150 mm |
| rated operational voltage | Main Circuit 690 V AC |
| object classification code | F |
| contact position indication | ON / OFF / TRIP |
| rated insulation voltage (ui) | 690 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938510-0188 |
| rated operational current (ie) | 0.25 A |
| declaration of conformity - ccc | https://library.abb.com/d/2020980307003526 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm2Flexible 1/2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 4 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938503-1188 |
| maximum operating voltage ul/csa | Main Circuit 600 V AC |
| data sheet, technical information | https://library.abb.com/d/2CDC131058D0201 |
| time-current characteristic curve | https://library.abb.com/d/1SAM300535F0002 |
| idea granular category code (igcc) | 4813 >> Circuit breakers |
| short-circuit current rating (sccr) | Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA |
| ambient air temperature compensation | Yes |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 6 kV |
| connecting capacity main circuit ul/csa | Flexible 1/2x 16-12 AWGStranded 1/2x 16-12 AWG |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 25g |
| conventional free-air thermal current (ith) | Main Circuit 0.25 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 3 ... 150 Hz |
| rated service short-circuit breaking capacity (ics) | (230 V AC) 100 kA(400 V AC) 100 kA |
| rated ultimate short-circuit breaking capacity (icu) | (400 V AC) 100 kA |
| rated instantaneous short-circuit current setting (ii) | 5 A |
