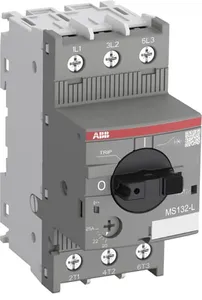

Product type: MS132-25L
Motorschutzschalter 20..25A Lampenstarter, Auslöseklasse 10 für u.a. Gewächshauslampen
Description
Der MS132-25L ist ein Lampenstarter mit einem Stromeinstellbereich von 20..25A. Er dient als Schalt- und Schutzorgan für Lampenlasten in beispielsweise Gewächshäusern. Der MS132-20L ist ein Lampenstarter mit einem Stromeinstellbereich von 16..20A. Er dient als Schalt- und Schutzorgan für Lampenlasten in beispielsweise Gewächshäusern. Die magnetische Auslösung erfolgt bei diesem Gerät bei 15 x In (+/-20%) im Falle eines Kurzschlusses. Außerdem verfügt der Lampenstarter über die Auslöseklasse 10 und kann mit dem Standard-MS132 Zubehör ausgestattet werden. Des weiteren lassen sich Direkt-Starterkombinationen aus MS132-xxL und AFxx-L Lampenlastschützen realisieren. Außerdem verfügt der Lampenstarter über die Auslöseklasse 10 und kann mit dem Standard-MS132 Zubehör ausgestattet werden. Des weiteren lassen sich Direkt-Starterkombinationen aus MS132-xxL und AFxx-L Lampenlastschützen realisieren.
Read More
