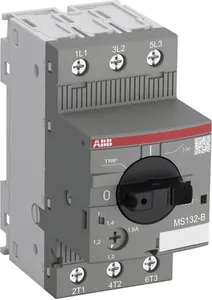

Product type: MS132-2.5B
Motorschutzschalter für Bahnanwendungen, Auslöseklasse 10, 1.6 ... 2.5 A
Description
MS132-B steht für die kompakte und leistungsstarke Baureihe in 45 mm Baubreite für den Motorschutz bis 15 kW (400 V) in Bahnanwendungen. Die Geräte erfüllen die aktuellen Bahnnormen und sind deshalb geeignet für den Einbau in Fahrgastbereichen und Führerständen von Zügen, die häufig in Tunnels und im Untergrund verkehren. Sie bieten zuverlässigen Schutz im Falle von Überlast und Kurzschluss und haben Trennfunktion. Die Bedienung erfolgt über einen Dehgriff mit klarer Schaltstellungsanzeige I/TRIP/0, zusätzlich verfügen MS132-B über eine Kurzschlussanzeige. Der Drehgriff ist mit Hilfe eines Vorhängeschlosses in 0-Position verriegelbar. Hilfs-, Signal- und Kurschlussmeldekontakte sowie Unterspannungs- und Arbeitsstromauslöser können werkzeuglos angebaut werden, dieses Zubehör ist auch für MS165-B verwendbar. 3-Phasen-Schienen für 65 A bzw. für 100 A und Einspeiseblöcke für 25 mm² bzw. 35 mm² erlauben die gemeinsame Einspeisung mehrerer Motorschutzschalter. Schutzgehäuse sowie Zubehör für Schaltschrank- und Türeinbau ergänzen das Sortiment. MS132-B haben Auslöseklasse 10, sind temperaturkompensiert und phasenausfallempfindlich. Sie erfüllen die internationalen Bahnnormen IEC 60077 in den anwendbaren Teilen, IEC 61373 (Kategorie 1, Klasse B) für Schock und Vibration sowie die europäische Sicherheitsnorm EN 45545-2 für Feuer und Rauch.
Read More
- Low Voltage Products and Systems
- Circuit Breakers
- Manual Motor Starters
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAM350200R1007.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.265 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | DE |
| Dimensions (WxHxD) | 0.045x0.09x0.0868 m |
| EAN code | 4013614521379 |
| Product group | |
| eclass | V11.0 : 27370401 |
| etim 5 | EC000074 - Motor protective circuit-breaker |
| etim 6 | EC000074 - Motor protection circuit-breaker |
| etim 7 | EC000074 - Motor protection circuit-breaker |
| etim 8 | EC000074 - Motor protection circuit-breaker |
| unspsc | 39121521 |
| remarks | UL508 Self-Protected Combination Motor Controller (Type E) in combination with feeder block S1-M3-xx |
| standards | IEC 60077-1 (applicable parts)IEC 60077-2 (applicable parts)IEC/EN 60947-1IEC/EN 60947-2IEC/EN 60947-4-1 |
| power loss | at Rated Operating Conditions per Pole 0.7 ... 1.8 W |
| rohs status | Following EU Directive 2011/65/EU |
| actuator type | Rotary Handle |
| setting range | 1.6 ... 2.5 A |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/1SAA963002-2002 |
| kc certificate | https://library.abb.com/d/1SAA963002-1502 |
| ul certificate | https://library.abb.com/d/UL_E137861, https://library.abb.com/d/UL_E345003 |
| cqc certificate | https://library.abb.com/d/CQC2010010307387700 |
| cul certificate | https://library.abb.com/d/cUL_E137861, https://library.abb.com/d/cUL_E345003 |
| number of poles | 3 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SAD938501-0197 |
| culus certificate | https://library.abb.com/d/cUL_E137861 |
| locked rotor amps | (200 V AC) Three Phase 15 A(208 V AC) Three Phase 15 A(220 ... 240 V AC) Three Phase 15 A(440 ... 480 V AC) Three Phase 15 A(550 ... 600 V AC) Three Phase 15 A |
| mounting position | 1 ... 6 |
| tightening torque | Main Circuit 0.8 ... 1.2 N·m |
| i2t characteristic | https://library.abb.com/d/1SAM300507F0001, https://library.abb.com/d/1SAM300507F0003 |
| rated frequency (f) | Main Circuit 50 HzMain Circuit 60 Hz |
| ampere rating ul/csa | 2.5 A |
| degree of protection | Housing IP20Main Circuit Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| electrical durability | 50000 cycle |
| mechanical durability | 100000 cycle |
| wire stripping length | Main Circuit 9 mm |
| ambient air temperature | Around the Enclosure 0 ... +40 °COperation -25 ... +70 °COperation Compensated -25 ... +60 °CStorage -50 ... +80 °C |
| full load amps motor use | (200 V AC) Three Phase 2.5 A(208 V AC) Three Phase 2.5 A(220 ... 240 V AC) Three Phase 2.5 A(440 ... 480 V AC) Three Phase 2.5 A(550 ... 600 V AC) Three Phase 2.5 A |
| horsepower rating ul/csa | (200 V AC) Three Phase 0.5 Hp(208 V AC) Three Phase 0.5 Hp(220 ... 240 V AC) Three Phase 0.5 Hp(440 ... 480 V AC) Three Phase 1 Hp(550 ... 600 V AC) Three Phase 1.5 Hp |
| recommended screw driver | Pozidriv 2 |
| tightening torque ul/csa | Main Circuit 10 ... 12 in·lb |
| environmental information | https://library.abb.com/d/1SAC200050H0009 |
| general use rating ul/csa | (600 V AC) 2.5 A |
| minimum mounting distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mmElectrical Conductive Board, Horizontal - Up to 690 V 1.5 mmElectrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 150 mm |
| rated operational voltage | Main Circuit 690 V ACMain Circuit 250 V DC |
| object classification code | F |
| contact position indication | ON / OFF / TRIP |
| rated insulation voltage (ui) | 690 V |
| cut-off current characteristic | https://library.abb.com/d/1SAM300508F0001, https://library.abb.com/d/1SAM300508F0003 |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938508-0197 |
| rated operational current (ie) | 2.5 A |
| declaration of conformity - ccc | https://library.abb.com/d/2020980307003526 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm2Flexible 1/2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 4 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938503-1197 |
| maximum operating voltage ul/csa | Main Circuit 600 V AC |
| data sheet, technical information | https://library.abb.com/d/1SBC100200C02__ |
| rated operational power ac-3 (pe) | (400 V) Three Phase 0.75 kW |
| time-current characteristic curve | https://library.abb.com/d/1SAM300505F0107 |
| idea granular category code (igcc) | 4845 >> 3 Pole Motor Circuit Protector Circuit Breakers |
| rated operational power ac-3e (pe) | (400 V) Three Phase 0.75 kW |
| rated operational current ac-3 (ie) | 2.5 A |
| rated operational current dc-5 (ie) | 2.5 A |
| short-circuit current rating (sccr) | Manual Self-Protected Combination Controllers (Type E), (480Y / 277 V AC) 65 kAManual Self-Protected Combination Controllers (Type E), (600Y / 347 V AC) 47 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 47 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 47 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 65 kAAny UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 47 kA |
| ambient air temperature compensation | Yes |
| rated operational current ac-3e (ie) | 2.5 A |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 6 kV |
| connecting capacity main circuit ul/csa | Flexible 1/2x 16-12 AWGStranded 1/2x 16-12 AWG |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 25g |
| conventional free-air thermal current (ith) | Main Circuit 2.5 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 3 ... 150 Hz |
| rated service short-circuit breaking capacity (ics) | (230 V AC) 100 kA(250 V DC) 3 Poles in Series 10 kA(400 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 100 kA(690 V AC) 100 kA |
| rated ultimate short-circuit breaking capacity (icu) | (230 V AC) 100 kA(400 V AC) 100 kA(440 V AC) 100 kA(500 V AC) 100 kA(690 V AC) 100 kA |
| rated instantaneous short-circuit current setting (ii) | 31.3 A |
