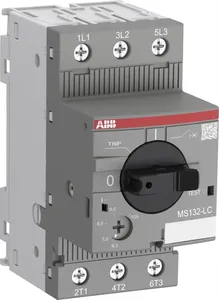

| Weight | 0.265 KG / psc. |
| Commodity number | 85362010 |
| Country of origin | DE |
| Dimensions (WxHxD) | 92x50x95 mm |
| EAN code | 4013614560699 |
| Product group | |
| eclass | V11.0 : 27370401 |
| etim 5 | EC000074 - Motor protective circuit-breaker |
| etim 6 | EC000074 - Motor protection circuit-breaker |
| etim 7 | EC000074 - Motor protection circuit-breaker |
| etim 8 | EC000074 - Motor protection circuit-breaker |
| unspsc | 39121521 |
| standards | IEC/EN 60947-1IEC/EN 60947-2 |
| actuator type | Rotary Handle |
| setting range | 6.3 ... 10 A |
| terminal type | Screw Terminals |
| eac certificate | https://library.abb.com/d/1SAA963005-2702 |
| number of poles | 3 |
| pollution degree | 3 |
| mounting position | 1 ... 6 |
| tightening torque | Main Circuit 0.8 ... 1.2 N·m |
| i2t characteristic | https://library.abb.com/d/1SAM300567F0001 |
| rated frequency (f) | Main Circuit 50 HzMain Circuit 60 Hz |
| degree of protection | Housing IP20Main Circuit Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| electrical durability | 50000 cycle |
| mechanical durability | 100000 cycle |
| wire stripping length | Main Circuit 9 mm |
| ambient air temperature | Operation -25 ... +70 °COperation Compensated -25 ... +60 °CStorage -50 ... +80 °C |
| recommended screw driver | Pozidriv 2 |
| environmental information | https://library.abb.com/d/1SAC200049H0009 |
| minimum mounting distance | Electrical Conductive Board, Horizontal - Up to 400 V 0 mmElectrical Conductive Board, Horizontal - Up to 690 V 1.5 mmElectrical Conductive Board, Vertical 75 mmOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 150 mm |
| rated operational voltage | Main Circuit 400 V AC |
| object classification code | F |
| contact position indication | ON / OFF / TRIP |
| rated insulation voltage (ui) | 690 V |
| cut-off current characteristic | https://library.abb.com/d/1SAM300568F0001 |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938500-0309 |
| rated operational current (ie) | 10 A |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm2Flexible 1/2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 4 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938502-1309 |
| time-current characteristic curve | https://library.abb.com/d/1SAM300565F0010 |
| idea granular category code (igcc) | 4845 >> 3 Pole Motor Circuit Protector Circuit Breakers |
| ambient air temperature compensation | Yes |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 6 kV |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 25g |
| conventional free-air thermal current (ith) | Main Circuit 10 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 3 ... 150 Hz |
| rated service short-circuit breaking capacity (ics) | (230 V AC) 50 kA(400 V AC) 50 kA |
| rated ultimate short-circuit breaking capacity (icu) | (230 V AC) 50 kA(400 V AC) 50 kA |
| rated instantaneous short-circuit current setting (ii) | 75 A |
