ABB

1SAM401923R1003

Product type: S2-M3-50

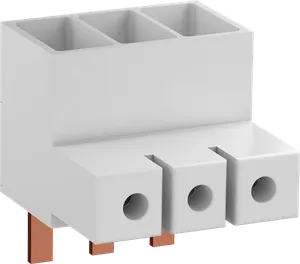

S2-M3-50 3-phase Power infeed Block for MS165, 50 mm²

Datasheet

RoHS Compliant

Description

S2-M3-50 three phase feeder terminals allow the connection of cable cross sections up to 50mm². They are usable with MS165 manual motor starters. The rated current is 125 A (IEC) / 120 A (UL). S2-M3-50

Low Voltage Products and Systems
Circuit Breakers
Manual Motor Starters
Low Voltage Products and Systems
Control Products
Manual Motor Starters
Manual Motor Starters

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAM401923R1003.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.172 KG / psc.
Commodity number	85369010
Country of origin	ES
Dimensions (WxHxD)	80x64x59 mm
EAN code	4013614555725
Product group
eclass	V11.0 : 27400603
etim 5	EC000275 - Rail terminal bar
etim 6	EC000275 - Rail terminal bar
etim 7	EC000275 - Rail terminal bar
etim 8	EC000275 - Rail terminal bar
unspsc	39121410
remarks	UL/CSA Type E/F and IEC
standards	IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1
rohs status	Following EU Directive 2011/65/EU
product name	Power Infeed Block
suitable for	MS165MO165
terminal type	Screw Terminals
accessory type	3-Phase Power Infeed Block
ul certificate	https://library.abb.com/d/E121190-20000619
accessory group	Electrical
number of poles	3
rohs information	https://library.abb.com/d/1SAD938503-0193
tightening torque	Main Circuit 6 N·m
degree of protection	IP20
wire stripping length	Main Circuit 16 mm
ambient air temperature	Operation -25 ... +60 °CStorage -50 ... +85 °C
tightening torque ul/csa	Main Circuit 54 in·lb
rated operational voltage	690 V AC250 V DC
object classification code	X
suitable for product class	Manual Motor Starters
declaration of conformity - ce	https://library.abb.com/d/1SAD101100-3411
rated operational current (ie)	125 A
connecting capacity main circuit	Flexible 1x 10 ... 50 mm2Rigid 1x 10 ... 50 mm2
declaration of conformity - ukca	https://library.abb.com/d/1SAD201100-3411
maximum operating voltage ul/csa	Main Circuit 600 V AC
data sheet, technical information	https://library.abb.com/d/1SBC100192C02--
idea granular category code (igcc)	4561 >> Power Blocks & Distribution Blocks
connecting capacity main circuit ul/csa	Flexible 1x 8-0 AWGStranded 1x 8-0 AWG
