ABB
1SAT112000R1011
Product type: HF0.6-DOL-24VDC

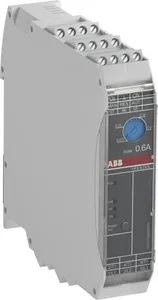

HF0.6-DOL-24VDC Electronic Compact Starter 24 VDC
RoHS Compliant
Description
The HF-DOL-range is used for the direct-on-line start of motors and the switching of non-resistive loads. With contactor and overload relay functionalities integrated into one device, the results are faster wiring times and fewer faults. The range covers 0.6 A, 2.4 A and up to 9 A - for motors up to 3 kW – 500 V AC. The integrated electronic overload protection has a wide setting range that enables just three models to cover all requirements. Setting range of HF0.6-DOL-24VDC is 0.075 A to 0.6 A. The control supply voltage is 24 V DC. For the control and main connection points ABB offers screw connections. ABB also offers a HF-DOLE safety range with emergency stop function. This offers Safety Integrity Level 3 in accordance with functional safety standard IEC 61508-1 and Performance Level 'e' in accordance with ISO 13849-1. The safety range is ATEX-certified. HF0.6-DOL-24VDC
Read More
- Low Voltage Products and Systems
- Control Products
- Motor Controllers
- Motor Controllers
- Electronic Starters
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAT112000R1011.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.205 KG / psc. |
| Commodity number | 85371098 |
| Country of origin | DE |
| Dimensions (WxHxD) | 150x34x115 mm |
| EAN code | 4013614515576 |
| Product group | NC |
| eclass | V11.0 : 27370905 |
| etim 6 | EC001037 - Motor starter/Motor starter combination |
| etim 7 | EC001037 - Motor starter/Motor starter combination |
| etim 8 | EC001037 - Motor starter/Motor starter combination |
| unspsc | 39121521 |
| function | Direct-on-line starter with overload protection |
| standards | IEC/EN 60947-1IEC/EN 60947-4-2UL 60947-1UL 60947-4-2 |
| power loss | Maximum 1.5 WMinimum 1.1 W |
| trip class | class 10A |
| rohs status | Following EU Directive 2011/65/EU |
| utilization | Motor Protection |
| product name | Electronic Starter |
| input current | 0.003 A |
| response time | Phase Asymmetry 33% 120 second [unit of time]Phase Asymmetry 67% 1.8 second [unit of time]Phase Failure 1.8 second [unit of time] |
| setting range | 0.075 ... 0.600 A |
| terminal type | Screw Terminals |
| cul certificate | https://library.abb.com/d/cUL E191658 |
| eac certificate | https://library.abb.com/d/1SAA918001-2701 |
| number of poles | 3 |
| pollution degree | 2 |
| rohs information | https://library.abb.com/d/1SAD038501-0195 |
| dimension diagram | https://library.abb.com/d/1SAT100401F0001 |
| e-number (sweden) | 3210488 |
| mounting position | 1 |
| product main type | HF |
| tightening torque | Control Circuit 0.5 ... 0.6 N·mMain Circuit 0.5 ... 0.6 N·m |
| e-number (finland) | 3707540 |
| delay time (τ) | Off, Maximum, Switched Off via Supply Voltage 500 msOff, Typical, Switched Off via Control Input Voltage 30 msOff, Typical, Switched Off via Supply Voltage 25 msOff, Maximum, Switched Off with Pushbutton 3 second [unit of time]Off, Minimum, Switched Off with Pushbutton 0.5 second [unit of time] |
| operational voltage | Maximum 550 V ACMinimum 42 V AC |
| overload protection | Electronic overload protection |
| rated frequency (f) | Main Circuit 50 HzMain Circuit 60 Hz |
| switching frequency | ≤ 2 Hz120 starts/min7200 starts/h |
| degree of protection | Housing IP20Main Circuit Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | III |
| phase loss sensitive | Yes |
| electrical durability | 30000000 cycle |
| mechanical durability | 10000 cycle |
| wire stripping length | Control Circuit 8 mmMain Circuit 8 mm |
| ambient air temperature | Operation -25 ... +70 °COperation Compensated -40 ... + 80 °C |
| full load amps motor use | 0.6 A |
| horsepower rating ul/csa | Nominal Switching Performance Full Load (power factor = 0.4) 0.4 HpNominal Switching Performance Full Load (power factor = 0.8) 0.6 Hp |
| recommended screw driver | Control Circuit M3Main Circuit M3 |
| tightening torque ul/csa | Control Circuit 5 ... 7 in·lbMain Circuit 5 ... 7 in·lb |
| number of protected poles | 3 |
| rated input voltage (uin) | Switching Threshold at Signal <0> -3 ... 9.6 VSwitching Threshold at Signal <1> 19.2 ... 30 V |
| rated operational voltage | Main Circuit 500 V AC |
| mean time to failure (mttf) | 43.3 year |
| rated insulation voltage (ui) | 500 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938504-0195 |
| declaration of conformity - ccc | https://library.abb.com/d/2020970304003456 |
| connecting capacity main circuit | Flexible with Ferrule 1x 2 ... 2.5 mm2Flexible 1x 2 ... 2.5 mm2Rigid 1x 2 ... 2.5 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938501-1195 |
| maximum operating voltage ul/csa | Main Circuit 500 V AC |
| rated uninterrupted current (iu) | 0.6 A |
| rated control supply current (is) | 0.04 A |
| rated control supply voltage (us) | 24 V DC |
| idea granular category code (igcc) | 4727 >> Motor starter controls |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 1 ... 2.5 mm2Flexible 1/2x 1 ... 2.5 mm2Rigid 1x 0.5 ... 4 mm2 |
| rated operational power ac-53a (pe) | 0.18 kW |
| short-circuit current rating (sccr) | (500 V AC, 30 A Class J or CC) 100 kA |
| rated operational current ac-51 (ie) | 0.6 A |
| rated operational current ac-53a (ie) | 0.6 A |
| maximum operating altitude permissible | Without Derating 2000 m |
| rated impulse withstand voltage (uimp) | Main Circuit 6 kV |
| connecting capacity main circuit ul/csa | Flexible with Ferrule 1x 24 ... 14 AWGFlexible 1x 24 ... 14 AWGSolid 1x 24 ... 14 AWG |
| connecting capacity control circuit ul/csa | Flexible with Ferrule 1x 24 ... 14 AWGFlexible 16-8 AWGSolid 1x 24 ... 14 AWG |
