ABB
1SAT116000R1011
Product type: HF0.6-ROLE-24VDC

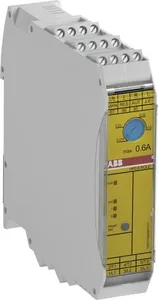

HF0.6-ROLE-24VDC Electronic Compact Starter 24 VDC
RoHS Compliant
Description
The HF-ROLE-range is our safety range with emergency stop function. It is used for forward and reverse running motors, as well as for switching non resistive loads. With contactor and overload relay functionalities integrated into one device, the results are faster wiring times and fewer faults. The range covers 0.6 A, 2.4 A and up to 9 A - for motors up to 3 kW – 500 V AC. The integrated electronic overload protection has a wide setting range that enables just three models to cover all requirements. Setting range of HF0.6-ROLE-24VDC is 0.075 A to 0.6 A. The control supply voltage is 24 V DC. For the control and main connection points ABB offers screw connections. Safety Integrity Level 3 in accordance with functional safety standard IEC 61508-1 and Performance Level 'e' in accordance with ISO 13849-1 are certified. Also ATEX is certified. HF0.6-ROLE-24VDC
Read More
- Low Voltage Products and Systems
- Control Products
- Motor Controllers
- Motor Controllers
- Electronic Starters
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAT116000R1011.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.218 KG / psc. |
| Commodity number | 85371098 |
| Country of origin | DE |
| Dimensions (WxHxD) | 150x34x115 mm |
| EAN code | 4013614515514 |
| Product group | NC |
| eclass | V11.0 : 27370905 |
| etim 6 | EC001037 - Motor starter/Motor starter combination |
| etim 7 | EC001037 - Motor starter/Motor starter combination |
| etim 8 | EC001037 - Motor starter/Motor starter combination |
| unspsc | 39121521 |
| function | Reversed-on-line starter with electronic overload protection and emergency stop function |
| standards | IEC/EN 60947-1IEC/EN 60947-4-2IEC/EN 61508IS0 13849UL 60947-1UL 60947-4-2 |
| power loss | Maximum 1.5 WMinimum 1.1 W |
| trip class | class 10A |
| rohs status | Following EU Directive 2011/65/EU |
| utilization | Motor Protection |
| product name | Electronic Starter |
| input current | 0.003 A |
| response time | Phase Asymmetry 33% 120 second [unit of time]Phase Asymmetry 67% 1.8 second [unit of time]Phase Failure 1.8 second [unit of time] |
| setting range | 0.075 ... 0.600 A |
| terminal type | Screw Terminals |
| cul certificate | https://library.abb.com/d/cUL E191658 |
| eac certificate | https://library.abb.com/d/1SAA918001-2701 |
| number of poles | 3 |
| safety category | 3 |
| atex certificate | https://library.abb.com/d/1SAA918002-3901 |
| pollution degree | 2 |
| rohs information | https://library.abb.com/d/1SAD038501-0194 |
| dimension diagram | https://library.abb.com/d/1SAT100401F0001 |
| e-number (sweden) | 3210498 |
| mounting position | 1 |
| product main type | HF |
| tightening torque | Control Circuit 0.5 ... 0.6 N·mMain Circuit 0.5 ... 0.6 N·m |
| e-number (finland) | 3707550 |
| delay time (τ) | Off, Maximum, Switched Off via Control Input Voltage 40 msOff, Maximum, Switched Off via Supply Voltage 500 msOff, Typical, Switched Off via Control Input Voltage 30 msOff, Typical, Switched Off via Supply Voltage 25 msOff, Maximum, Switched Off with Pushbutton 3 second [unit of time]Off, Minimum, Switched Off with Pushbutton 0.5 second [unit of time] |
| diagnostic coverage | 98.79 % |
| operational voltage | Maximum 550 V ACMinimum 42 V AC |
| overload protection | Electronic overload protection |
| rated frequency (f) | Main Circuit 50 HzMain Circuit 60 Hz |
| switching frequency | ≤ 2 Hz120 starts/min7200 starts/h |
| degree of protection | Housing IP20Main Circuit Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| overvoltage category | III |
| phase loss sensitive | Yes |
| electrical durability | 30000000 cycle |
| mechanical durability | 10000 cycle |
| wire stripping length | Control Circuit 8 mmMain Circuit 8 mm |
| performance level (pl) | Up to e |
| ambient air temperature | Operation -25 ... +70 °COperation Compensated -40 ... + 80 °C |
| full load amps motor use | 0.6 A |
| horsepower rating ul/csa | Nominal Switching Performance Full Load (power factor = 0.4) 0.4 HpNominal Switching Performance Full Load (power factor = 0.8) 0.6 Hp |
| recommended screw driver | Control Circuit M3Main Circuit M3 |
| tightening torque ul/csa | Control Circuit 5 ... 7 in·lbMain Circuit 5 ... 7 in·lb |
| number of protected poles | 3 |
| rated input voltage (uin) | Switching Threshold at Signal <0> -3 ... 9.6 VSwitching Threshold at Signal <1> 19.2 ... 30 V |
| rated operational voltage | Main Circuit 500 V AC |
| mean time to failure (mttf) | 39.3 year |
| safety integrity level (sil) | 3 |
| rated insulation voltage (ui) | 500 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938504-0194 |
| diagnostic coverage safe (dcs) | 40.71 % |
| declaration of conformity - ccc | https://library.abb.com/d/2020970304003456 |
| connecting capacity main circuit | Flexible with Ferrule 1x 2 ... 2.5 mm2Flexible 1x 2 ... 2.5 mm2Rigid 1x 2 ... 2.5 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938501-1194 |
| maximum operating voltage ul/csa | Main Circuit 500 V AC |
| rated uninterrupted current (iu) | 0.6 A |
| rated control supply current (is) | 0.04 A |
| rated control supply voltage (us) | 24 V DC |
| idea granular category code (igcc) | 4727 >> Motor starter controls |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 1 ... 2.5 mm2Flexible 1/2x 1 ... 2.5 mm2Rigid 1x 0.5 ... 4 mm2 |
| rated operational power ac-53a (pe) | 0.18 kW |
| short-circuit current rating (sccr) | (500 V AC, 30 A Class J or CC) 100 kA |
| rated operational current ac-51 (ie) | 0.6 A |
| rated operational current ac-53a (ie) | 0.6 A |
| maximum operating altitude permissible | Without Derating 2000 m |
| mean time to dangerous failure (mttfd) | Motor Protection 447 yearSafe Shutdown 517 year |
| rated impulse withstand voltage (uimp) | Main Circuit 6 kV |
| connecting capacity main circuit ul/csa | Flexible with Ferrule 1x 24 ... 14 AWGFlexible 1x 24 ... 14 AWGSolid 1x 24 ... 14 AWG |
| connecting capacity control circuit ul/csa | Flexible with Ferrule 1x 24 ... 14 AWGFlexible 16-8 AWGSolid 1x 24 ... 14 AWG |
