ABB

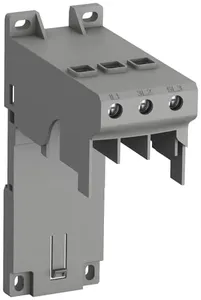

1SAX201910R0001

Product type: DB45EF

DB45EF Einzelaufstellung für EF45

Datasheet

Description

DB45EF Einzelaufstellungsset für elektronische Überlastrelais der Baureihe EF45

Low Voltage Products and Systems
Control Products
Contactors
Electronic Overload Relays Accessories

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAX201910R0001.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.1 KG / psc.
Commodity number	85389099
Country of origin	BG
Dimensions (WxHxD)	0.045x0.13x0.098 m
EAN code	4013614493393
Product group	SE
eclass	V11.0 : 27371392
etim 4	EC002498 - Accessories for low-voltage switch technology
etim 5	EC002498 - Accessories for low-voltage switch technology
etim 6	EC002498 - Accessories for low-voltage switch technology
etim 7	EC002498 - Accessories for low-voltage switch technology
etim 8	EC002498 - Accessories/spare parts for low-voltage switch technology
unspsc	39122221
standards	IEC/EN 60947-1IEC/EN 60947-4-1UL 60947-1UL 60947-4-1
rohs status	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
suitable for	EF45
ul certificate	https://library.abb.com/d/E48139-19990512
number of poles	3
rohs information	https://library.abb.com/d/1SAD938519-0180
dimension diagram	https://library.abb.com/d/1SAX200404F0001
tightening torque	Main Circuit 0.8 ... 1.5 N·m
e-number (finland)	3709422
wire stripping length	Main Circuit 15 mm
recommended screw driver	Pozidriv 2
tightening torque ul/csa	Main Circuit 7 ... 13 in·lb
declaration of conformity - ce	https://library.abb.com/d/1SAD938519-0180
connecting capacity main circuit	Flexible with Ferrule 1x 2.5 ... 10 mm2Flexible with Insulated Ferrule 1x 2.5 ... 10 mm2Flexible 1x 2.5 ... 10 mm2Rigid 1x 2.5 ... 16 mm2
declaration of conformity - ukca	https://library.abb.com/d/1SAD938502-1180
data sheet, technical information	https://library.abb.com/d/2CDC107025D0201
idea granular category code (igcc)	5219 >> Switch part or accessory
connecting capacity main circuit ul/csa	Flexible 1x 14-6 AWGStranded 1x 14-6 AWG
