ABB

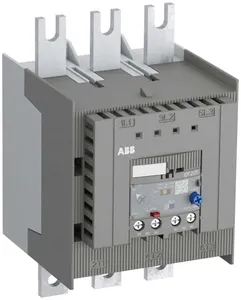

1SAX531001R1101
Product type: EF205-210
EF205-210 Electronic Overload Relay 63 ... 210 A
RoHS Compliant
Description
The EF205-210 is an self-supplied electronic overload relay, which means no extra external supply is needed. It offers reliable and fast protection for motors in the event of overload or phase failure. Easy to use like a thermal overload relay and compatible with standard motor applications, the electronic overload relay is convincing, above all, due to its wide setting range, high accuracy, high operational temperature range and the possibility to select a trip class (10E, 20E, 30E). Further features are the temperature compensation, trip contact (NC), signal contact (NO), automatic- or manual reset selectable, trip-free mechanism, STOP- and Test function and a trip indication. The overload relays are connected directly to the contactors. EF205 has ATEX and IECEx certification 1) 1) ATEX is valid for products produced from week 42, 2014. IECEx is valid for products produced from week 15, 2017. EF205-210
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Electronic Overload Relays
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SAX531001R1101.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 1.256 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | CN |
| Dimensions (WxHxD) | 195x199x140 mm |
| EAN code | 4013614442223 |
| Product group | SE |
| eclass | V11.0 : 27371502 |
| etim 4 | EC001080 - Electronic overload relay |
| etim 5 | EC001080 - Electronic overload relay |
| etim 6 | EC001080 - Electronic overload relay |
| etim 7 | EC001080 - Electronic overload relay |
| etim 8 | EC001080 - Electronic overload relay |
| unspsc | 39121520 |
| standards | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1 |
| power loss | at Rated Operating Conditions per Pole 0.107 ... 1.191 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| suitable for | A145A185AF145AF185AF190AF205 |
| setting range | 63 ... 210 A |
| bv certificate | https://library.abb.com/d/1SAA941002-0201 |
| cb certificate | https://library.abb.com/d/1SAA942007-2001 |
| lr certificate | https://library.abb.com/d/1SAA941002-0501 |
| ul certificate | https://library.abb.com/d/E48139-19990512 |
| abs certificate | https://library.abb.com/d/1SAA941002-0102 |
| ccs certificate | https://library.abb.com/d/1SAA941001-0901 |
| cqc certificate | https://library.abb.com/d/CQC2012010309537805 |
| dnv certificate | https://library.abb.com/d/1SAA941003-0302 |
| eac certificate | https://library.abb.com/d/1SAA941003-2701 |
| number of poles | 3 |
| atex certificate | https://library.abb.com/d/1SAA941004-3901 |
| pollution degree | 3 |
| rina certificate | https://library.abb.com/d/RINA_ELE376813CS |
| rmrs certificate | https://library.abb.com/d/1SAA941001-0701 |
| rohs information | https://library.abb.com/d/1SAD938519-0180 |
| dimension diagram | https://library.abb.com/d/1SAX500401F0001 |
| e-number (sweden) | 3210248 |
| iecex certificate | https://library.abb.com/d/1SAA941000-4001 |
| mounting position | 1 ... 6 |
| tightening torque | Auxiliary Circuit 0.8 ... 1.2 N·mMain Circuit 18 N·m |
| e-number (finland) | 3705899 |
| rated frequency (f) | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DCMain Circuit 50 HzMain Circuit 60 Hz |
| degree of protection | Housing IP20Main Circuit Terminals IP00 |
| contact rating ul/csa | (NC:) B600(NC:) Q600(NO:) B600(NO:) Q600 |
| wire stripping length | Auxiliary Circuit 9 mm |
| ambient air temperature | Operation -25 ... +70 °COperation Compensated -25 ... +70 °CStorage -50 ... +85 °C |
| recommended screw driver | Auxiliary Circuit Pozidriv 2 |
| tightening torque ul/csa | Auxiliary Circuit 7 ... 11 in·lbMain Circuit 160 in·lb |
| environmental information | https://library.abb.com/d/1SAC200101H0001 |
| number of protected poles | 3 |
| rated operational voltage | Auxiliary Circuit 600 V AC/DCMain Circuit 1000 V AC |
| object classification code | F |
| rated insulation voltage (ui) | 1000 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938519-0180 |
| rated operational current (ie) | 210 A |
| declaration of conformity - ccc | https://library.abb.com/d/2020980309000290 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 1 |
| connecting capacity main circuit | Hole Diameter > 8 mm2Rigid or Flexible with Cable Lug 1x 16 ... 185 mm2Rigid or Flexible with Cable Lug 2x 16 ... 120 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938502-1180 |
| maximum operating voltage ul/csa | Main Circuit 600 V AC |
| data sheet, technical information | https://library.abb.com/d/2CDC107042D0201 |
| time-current characteristic curve | https://library.abb.com/d/1SAX100509F0001, https://library.abb.com/d/1SAX100510F0001 |
| idea granular category code (igcc) | 5364 >> Overload relay |
| ambient air temperature compensation | Yes |
| rated operational current ac-15 (ie) | (240 V) NC 3 A(240 V) NO 3 A(400 V) NC 1.1 A(400 V) NO 1.1 A(500 V) NC 0.75 A(500 V) NO 0.75 A |
| rated operational current dc-13 (ie) | (125 V) NC 0.55 A(125 V) NO 0.5 A(24 V) NC 1.5 A(24 V) NO 1.5 A(250 V) NC 0.27 A(250 V) NO 0.27 A(60 V) NC 0.55 A(60 V) NO 0.55 A |
| connecting capacity auxiliary circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm2Flexible 1/2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 4 mm2 |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kVMain Circuit 8 kV |
| connecting capacity main circuit ul/csa | Stranded 1/2x 6-0000 AWG |
| resistance to shock acc. to iec 60068-2-27 | 11 ms Pulse 25g |
| conventional free-air thermal current (ith) | Auxiliary Circuit NC 5 AAuxiliary Circuit NO 5 A |
| connecting capacity auxiliary circuit ul/csa | Flexible 1/2x 18-10 AWGStranded 1/2x 18-10 AWG |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 3 ... 150 Hz |
