Product type: EF370-380

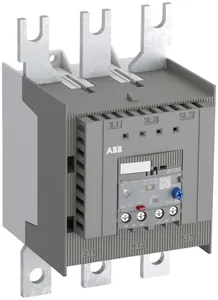

EF370-380 Elektronisches Überlastrelais 115-380 A, Auslöseklasse einstellbar
Description
Selbstversorgende elektronische Überlastrelais EF370 schützen Motoren im Überlastfall oder bei einem Phasenausfall zuverlässig gemäß IEC/EN 60947-1, IEC/EN 60947-4-1 bzw. IEC/EN 60947-5-1. Sie sind kompatibel mit Standardmotoranwendungen und besitzen einen weiten Einstellungsbereich, eine hohe Genauigkeit und Betriebstemperaturbereich, und die Möglichkeit aus 3 Auslöseklassen (10E, 20E, 30E) auszuwählen. Die EF370 können direkt an AF265, AF265 und AF370 Schütze angeschlossen werden, oder sind separat auf Montageplatten montierbar. Eine manuelle oder automatische Rückstellung ist auswählbar, Temperaturkompensation, TEST- und STOP-Funktion, Ausgelöst-Anzeige auf der Vorderseite, Auslöse- und Signalkontakt integriert (1 Schließer/1 Öffner). EF370 besitzen eine ATEX-Zulassung.
Read More
