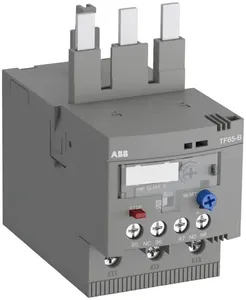

| Weight | 0.382 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | CN |
| Dimensions (WxHxD) | 0.1069x0.1014x0.0549 m |
| EAN code | 4013614563201 |
| Product group | SE |
| eclass | V11.0 : 27371501 |
| etim 5 | EC000106 - Thermal overload relay |
| etim 6 | EC000106 - Thermal overload relay |
| etim 7 | EC000106 - Thermal overload relay |
| etim 8 | EC000106 - Thermal overload relay |
| unspsc | 39121520 |
| standards | IEC/EN 60947-1IEC/EN 60947-4-1IEC/EN 60947-5-1UL 60947-1UL 60947-4-1 |
| power loss | at Rated Operating Conditions per Pole 2.5 ... 3.4 W |
| rohs status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| setting range | 57 ... 67 A |
| ul certificate | https://library.abb.com/d/E48139-20130329 |
| number of poles | 3 |
| pollution degree | 3 |
| rohs information | https://library.abb.com/d/1SAD938500-0314 |
| tightening torque | Auxiliary Circuit 1 ... 1.2 N·mMain Circuit 4.0 ... 4.5 N·m |
| rated frequency (f) | Auxiliary Circuit 50 HzAuxiliary Circuit 60 HzAuxiliary Circuit DCMain Circuit 50 HzMain Circuit 60 Hz |
| degree of protection | Housing IP20Main Circuit Terminals IP10 |
| contact rating ul/csa | (NC:) B600(NC:) Q600(NO:) Q600(NO:) D300 |
| wire stripping length | Auxiliary Circuit 9 mmMain Circuit 17 mm |
| ambient air temperature | Operation -40 ... +70 °COperation Compensated -40 ... +70 °CStorage -50 ... +80 °C |
| recommended screw driver | Auxiliary Circuit Pozidriv 2Main Circuit Pozidriv 2 |
| tightening torque ul/csa | Auxiliary Circuit 9 ... 11 in·lbMain Circuit 35 ... 40 in·lb |
| number of protected poles | 3 |
| rated operational voltage | Auxiliary Circuit 600 V AC/DCMain Circuit 690 V ACMain Circuit 440 V DC |
| object classification code | F |
| rated insulation voltage (ui) | 690 V |
| declaration of conformity - ce | https://library.abb.com/d/1SAD938500-0314 |
| rated operational current (ie) | 67 A |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 1 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 2.5 ... 10 mm2Flexible with Ferrule 1x 2.5 ... 35 mm2Flexible with Insulated Ferrule 1x 2.5 ... 35 mm2Flexible with Insulated Ferrule 1/2x 2.5 ... 10 mm2Flexible 1/2x 2.5 ... 16 mm2Flexible 1x 2.5 ... 35 mm2Rigid 1/2x 2.5 ... 16 mm2Rigid 1x 2.5 ... 35 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SAD938501-1314 |
| maximum operating voltage ul/csa | Main Circuit 600 V AC |
| time-current characteristic curve | https://library.abb.com/d/1SAZ800502F0007 |
| idea granular category code (igcc) | 5364 >> Overload relay |
| ambient air temperature compensation | Yes |
| rated operational current ac-15 (ie) | (120 V) NC 3 A(120 V) NO 0.5 A(240 V) NC 3 A(240 V) NO 0.5 A(400 V) NC 0.75 A(400 V) NO 0.5 A(500 V) NC 0.75 A(500 V) NO 0.5 A |
| rated operational current dc-13 (ie) | (125 V) NC 0.55 A(125 V) NO 0.55 A(24 V) NC 1.25 A(24 V) NO 1.25 A(250 V) NC 0.27 A(250 V) NO 0.27 A(500 V) NC 0.15 A(500 V) NO 0.15 A(60 V) NC 0.55 A(60 V) NO 0.55 A |
| connecting capacity auxiliary circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Flexible 1/2x 0.75 ... 1 mm2Flexible 1/2x 1 ... 2.5 mm2Rigid 1/2x 0.75 ... 4 mm2 |
| maximum operating altitude permissible | 2000 m |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kVMain Circuit 8 kV |
| connecting capacity main circuit ul/csa | Flexible 1x 12-2 AWGFlexible 2x 12-6 AWGStranded 1x 12-2 AWGStranded 2x 12-6 AWG |
| resistance to shock acc. to iec 60068-2-27 | 25g / 2 shocks / 13 ms11 ms Pulse 25g |
| conventional free-air thermal current (ith) | Auxiliary Circuit NC 6 AAuxiliary Circuit NO 4 A |
| connecting capacity auxiliary circuit ul/csa | Flexible 1/2x 18-12 AWGStranded 1/2x 18-12 AWG |
| resistance to vibrations acc. to iec 60068-2-6 | 5g / 3 ... 150 Hz |
