Product type: NFZ51/11-20

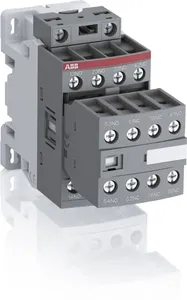

NFZ51/11-20 Hilfsschütz 12-20V DC 5S+1Ö + 1voreilenderS + 1nacheilenderÖ

Description

Die 8-poligen NFZ51/11 Hilfsschütze werden zum Schalten von Hilfs- und Steuerstromkreisen genutzt, einschließlich der Verwendung der integrierten Verzögerungs- / Vorlaufkontakte. Die Hilfsschütze besitzen eine elektronische Spulenschnittstelle, die einen großen Steuerspannungsbereich ermöglicht und große Steuerspannungschwankungen bewältigen kann. Sie widerstehen kurzen Spannungseinbrüchen und Spannungsabfällen (Konformität nach Semi F47-0706). NFZ-Hilfsschütze haben einen eingebauten Überspannungsschutz und benötigen keine zusätzlichen Löschglieder. Bei Typen mit Spulencode -20 muss die Anschlusspolarität (A1+ / A2-) beachtet werden.
  • Low Voltage Products and Systems
  • Control Products
  • Contactors
  • Block Contactors
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.34 KG / psc.
Commodity number85365080
Country of originFR
Dimensions (WxHxD)0.045x0.086x0.111 m
EAN code3471523107908
Product groupSB
eclass V11.0 : 27371003
etim 4 EC000196 - Contactor relay
etim 5 EC000196 - Contactor relay
etim 6 EC000196 - Contactor relay
etim 7 EC000196 - Contactor relay
etim 8 EC000196 - Contactor relay
unspsc 39121500
standards IEC 60947-5-1 and EN 60947-5-1, UL 508, CSA C22.2 N°14
rohs status Following EU Directive 2011/65/EU
operate time Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms
terminal type Screw Terminals
cb certificate https://library.abb.com/d/CB_SE-93051M2
ul certificate https://library.abb.com/d/UL_20130206_E252354-2-1
abs certificate https://library.abb.com/d/ABS_20-2060694-PDA
ccc certificate https://library.abb.com/d/CCC_2011010303465426
cqc certificate https://library.abb.com/d/CQC2019010303267993
cul certificate https://library.abb.com/d/UL_20180227_E252354_2_1
eac certificate https://library.abb.com/d/EAC_RU C-FR ME77 B03544
rohs information https://library.abb.com/d/1SBD250005U1000
climatic withstand Category B according to IEC 60947-1 Annex Q
rated frequency (f) Auxiliary Circuit 50 / 60 Hz
degree of protection acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20
mounting on din rail TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
wire stripping length Auxiliary Circuit 10 mmControl Circuit 10 mm
ambient air temperature Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air -40 ... 70 °C
tightening torque ul/csa Auxiliary Circuit 11 in·lbControl Circuit 11 in·lb
environmental information https://library.abb.com/d/1SBC100222M0201
rated operational voltage Auxiliary Circuit 690 V
object classification code K
rated insulation voltage (ui) acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V
declaration of conformity - ce https://library.abb.com/d/1SBD250005U1000
declaration of conformity - ccc https://library.abb.com/d/2020980303000175
number of auxiliary contacts nc 2
number of auxiliary contacts no 6
declaration of conformity - ukca https://library.abb.com/d/1SBD250036U1000
mounting by screws (not supplied) 2 x M4 screws placed diagonally
rated control circuit voltage (uc) DC Operation 12 ... 20 V
connecting capacity control circuit Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Rigid 1/2x 1 ... 2.5 mm2
rated operational current ac-15 (ie) (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
rated operational current dc-13 (ie) (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W
connecting capacity auxiliary circuit Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 2.5 mm2
maximum electrical switching frequency (AC-15) 1200 cycles per hour(DC-13) 900 cycles per hour
maximum mechanical switching frequency 6000 cycles per hour
maximum operating altitude permissible Without Derating 3000 m
rated impulse withstand voltage (uimp) 6 kV
resistance to shock acc. to iec 60068-2-27 Closed, Shock Direction: B1 25 gClosed, Shock Direction: B2 15 gOpen, Shock Direction: B1 5 gShock Direction: A 30 gShock Direction: B2 15 gShock Direction: C1 25 g
conventional free-air thermal current (ith) acc. to IEC 60947-5-1, q = 40 °C 16 A
resistance to vibrations acc. to iec 60068-2-6 5 ... 300 Hz 4 g closed position / 2 g open position
rated short-time withstand current low voltage (icw) for 0.1 s 140 Afor 1 s 100 A
