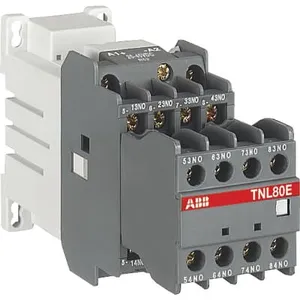

| Weight | 0.58 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | BG |
| Dimensions (WxHxD) | 0.044x0.078x0.13 m |
| EAN code | 3471522330512 |
| Product group | SR |
| eclass | V11.0 : 27371018 |
| etim 4 | EC000196 - Contactor relay |
| etim 5 | EC000196 - Contactor relay |
| etim 6 | EC000196 - Contactor relay |
| etim 7 | EC000196 - Contactor relay |
| etim 8 | EC002552 - Power contactor, DC switching |
| unspsc | 39121500 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 16 ... 27 msBetween Coil De-energization and NO Contact Opening 10 ... 17 msBetween Coil Energization and NC Contact Opening 20 ... 70 msBetween Coil Energization and NO Contact Closing 50 ... 100 ms |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_SE_66912A1 |
| ccc certificate | https://library.abb.com/d/CCC_2012010304558126 |
| cqc certificate | https://library.abb.com/d/CQC2012010304558126 |
| csa certificate | https://library.abb.com/d/CSA_1041746 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B01006 |
| coil consumption | Holding DC (Umin / Umax) 2.5 / 8.5 WPull-in DC (Umin / Umax) 2.5 / 8.5 W |
| gost certificate | https://library.abb.com/d/GOST_POCCFRME77B07174 |
| rohs information | https://library.abb.com/d/1SBD250808U1000 |
| dimension diagram | https://library.abb.com/d/FPTE307873 |
| climatic withstand | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| rated frequency (f) | Supply Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| ambient air temperature | Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air -40 ... 55 °CNear Contactor for Operation in Free Air (Ucmin-Ucmax) according to IEC 60077 -40 ...+70 °C |
| environmental information | https://library.abb.com/d/1SBD250127E1002 |
| rated operational voltage | Auxiliary Circuit 690 V |
| object classification code | K |
| rated insulation voltage (ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250808U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980303000256 |
| number of auxiliary contacts nc | 4 |
| number of auxiliary contacts no | 4 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250825U1000 |
| short-circuit protective devices | Auxiliary Circuit - gG Type Fuses 10 A |
| data sheet, technical information | https://library.abb.com/d/1SNC001003C0202 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated control circuit voltage (uc) | DC Operation 17 ... 32 V |
| rated operational current ac-15 (ie) | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(380 / 400 V) 3 A |
| rated operational current dc-13 (ie) | (24 V) 6 / 144 A(48 V) 2.8 / 134 A(72 V) 1 / 72 A(125 V) 0.55 / 69 A(250 V) 0.3 / 75 A |
| connecting capacity auxiliary circuit | Flexible with Cable End 0.75 ... 2.5 mm2Rigid Cable 1 ... 4 mm2 |
| maximum electrical switching frequency | 1200 cycles per hour |
| maximum mechanical switching frequency | 6000 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 8 kV |
| resistance to shock acc. to iec 60068-2-27 | Closed, Shock Direction: A 20 gClosed, Shock Direction: B1 15 gClosed, Shock Direction: C1 20 gClosed, Shock Direction: C2 14 gOpen, Shock Direction: A 10 gOpen, Shock Direction: B1 5 gOpen, Shock Direction: C1 8 gOpen, Shock Direction: C2 8 gShock Direction: B2 10 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-5-1, q = 40 °C 16 A |
| rated short-time withstand current low voltage (icw) | for 0.1 s 140 Afor 1 s 100 A |
