ABB
1SBL121004R2632
Product type: AS16-30-32S-26

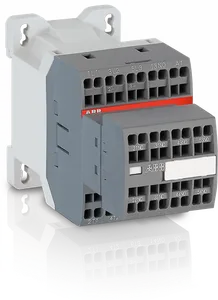

AS16-30-32S-26 Schütz 230V 50/60Hz Federzuganschluss
Description
Schütze AS/ASL 09 bis AS/ASL 16 von 4 bis 7,5 kW AC-3 (400 V) stehen für die sehr kompakte Baureihe mit AC- oder DC-Ansteuerung. Sie schalten Leistungskreise mit Motoren, leicht induktiven oder nicht-induktiven Lasten und verfügen über 3 Hauptschließerkontakte sowie 1 bzw. 5 Hilfskontakte. Anbaubare Zubehörteile sind seitlich einsteckbare Löschglieder sowie 1- polige, frontseitig aufsteckbare Hilfsschalter. Alle Hilfsöffnerkontakte sind als Mirrorkontakte nach IEC60947-5-1 Anhang L ausgeführt. Weiteres Zubehör wie Zeitglieder für An- und Abfallverzögerung, Verdrahtungshilfen sowie Verriegelungsglieder u.a. ergänzen das Sortiment.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL121004R2632.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.26 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | CN |
| Dimensions (WxHxD) | 0.045x0.068x0.111 m |
| EAN code | 3471523068261 |
| Product group | SB |
| eclass | V11.1 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| standards | IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 7 ... 22 msBetween Coil De-energization and NO Contact Opening 5 ... 19 msBetween Coil Energization and NC Contact Opening 6 ... 18 msBetween Coil Energization and NO Contact Closing 9 ... 24 ms |
| terminal type | Spring Terminals |
| cb certificate | https://library.abb.com/d/CB_CN13475-M1 |
| ul certificate | https://library.abb.com/d/UL_20120917-E312527-1-1 |
| ccc certificate | https://library.abb.com/d/CCC_2007010309251577 |
| cqc certificate | https://library.abb.com/d/CQC2007010309251577 |
| ul listing card | https://library.abb.com/d/UL_E312527 |
| gost certificate | https://library.abb.com/d/GOST_POCCCNME77B07822.pdf |
| rohs information | https://library.abb.com/d/1SBD251005E1002 |
| climatic withstand | Category B according to IEC 60947-1 Annex Q |
| rated frequency (f) | Auxiliary Circuit 50 / 60 HzMain Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20IP20 |
| wire stripping length | Auxiliary Circuit 10 mmControl Circuit 10 mmMain Circuit 10 mm |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (120 V AC) Single Phase 3/4 hp(200 ... 208 V AC) Three Phase 3 hp(220 ... 240 V AC) Three Phase 5 hp(240 V AC) Single Phase 2 hp(440 ... 480 V AC) Three Phase 10 hp(550 ... 600 V AC) Three Phase 10 hp |
| environmental information | https://library.abb.com/d/1SBD250156E1000 |
| general use rating ul/csa | (600 V AC) 15.2 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 155 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 90 A |
| rated operational voltage | Auxiliary Circuit 690 VMain Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250014U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001224 |
| number of auxiliary contacts nc | 2 |
| number of auxiliary contacts no | 3 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm2Rigid 1/2x 0.75 ... 2.5 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250049U1000 |
| rated operational power ac-3 (pe) | (400 V) 7.5 kW(415 V) 7.5 kW(440 V) 7.5 kW(500 V) 7.5 kW(690 V) 7.5 kW(220 / 230 / 240 V) 4 kW |
| idea granular category code (igcc) | 4755 >> Contactors |
| rated control circuit voltage (uc) | 50 Hz 230 V60 Hz 230 V |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm2Rigid 1/2x 0.75 ... 2.5 mm2 |
| rated operational current ac-1 (ie) | (690 V) 40 °C 22 A(690 V) 60 °C 17 A(690 V) 70 °C 14 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 15.5 A(440 V) 60 °C 13.6 A(500 V) 60 °C 12.5 A(690 V) 60 °C 9 A(380 / 400 V) 60 °C 15.5 A(220 / 230 / 240 V) 60 °C 15.7 A |
| rated operational current ac-15 (ie) | (500 V) NC 2(500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A |
| rated operational current dc-13 (ie) | (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W |
| connecting capacity auxiliary circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm2Rigid 1/2x 0.75 ... 2.5 mm2 |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour(AC-15) 1200 cycles per hour(AC-2 / AC-4) 300 cycles per hour(AC-3) 1200 cycles per hour(DC-13) 900 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | 3000 m |
| rated impulse withstand voltage (uimp) | Auxiliary Circuit 6 kV |
| resistance to shock acc. to iec 60068-2-27 | Closed, Shock Direction: B1 10 gClosed, Shock Direction: C1 20 gClosed, Shock Direction: C2 20 gOpen, Shock Direction: B1 5 gOpen, Shock Direction: C1 9 gOpen, Shock Direction: C2 14 gShock Direction: A 20 gShock Direction: B2 15 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 22 Aacc. to IEC 60947-5-1, q = 40 °C 10 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5 ... 300 Hz 3 g Closed position / 2 g Open position |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 124 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 22 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 55 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 250 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 75 Afor 0.1 s 140 Afor 1 s 100 A |
