ABB
1SBL136501R3000

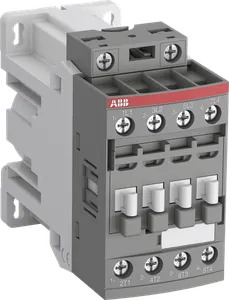

Product type: AF09Z-22-00-30
AF09Z-22-00-30 Schütz 24V DC, 4-polig, 2S+2Ö, 4-polig Low Power Consumption
Description
Die 4-poligen Schütze AF09Z werden zur Steuerung von Leistungsstromkreisen bis 690V AC und 220V DC eingesetzt. Sie werden hauptsächlich zur Steuerung von nicht-induktiven oder leicht induktiven Lasten eingesetzt. Die Schütze mit Spulencode -30 verfügen über eine elektronische 24 V DC-Spulenschnittstelle mit eingebautem Überspannungsschutz, wodurch ein reduzierter Haltespulenverbrauch von bis zu 1,7W und eine direkte Ansteuerung durch den SPS-Ausgang ≥ 250mA 24V DC, ohne zusätzliches Schnittstellenrelais, erreicht wird. Hierbei muss die Polarität an den Spulenanschlüssen (A1+ und A2-) beachtet werden. Front- und seitlich montierbare Hilfskontaktblöcke mit zwangsgeführten Hilfskontakten gemäß Anhang L von IEC 60947-5-1 und Öffner-Spiegelkontakte nach Anhang F der IEC 60947-4-1 verfügbar.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL136501R3000.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.43 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FR |
| Dimensions (WxHxD) | 0.045x0.086x0.097 m |
| EAN code | 3471523116696 |
| Product group | SB |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 22 ... 57 msBetween Coil De-energization and NO Contact Opening 17 ... 29 msBetween Coil Energization and NC Contact Opening 20 ... 35 msBetween Coil Energization and NO Contact Closing 27 ... 53 ms |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_SE-108879 |
| gl certificate | https://library.abb.com/d/DNV-GL_TAE00001AF-3 |
| ul certificate | https://library.abb.com/d/UL_20171228-E319322_3_1 |
| abs certificate | https://library.abb.com/d/ABS_20-2060694-PDA |
| ccc certificate | https://library.abb.com/d/CCC_2010010304445624 |
| cqc certificate | https://library.abb.com/d/CQC2010010304445624, https://library.abb.com/d/CQC2020010304298240 |
| eac certificate | https://library.abb.com/d/EAC_RU_FRME77B03447 |
| rmrs certificate | https://library.abb.com/d/RMRS_1802705280 |
| rohs information | https://library.abb.com/d/1SBD250001U1000 |
| dimension diagram | https://library.abb.com/d/DNV_TAE00001AF-4 |
| climatic withstand | Category B according to IEC 60947-1 Annex Q |
| e-number (finland) | 3709064 |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| mounting on din rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| wire stripping length | Control Circuit 10 mmMain Circuit 10 mm |
| ambient air temperature | Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air -40 ... 70 °C |
| general use rating ul/csa | (600 V AC) 25 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 2 |
| number of main contacts no | 2 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250001U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001253, https://library.abb.com/d/2020980304001082 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm2Flexible with Insulated Ferrule 1x 0.75 ... 4 mm2Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 6 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250032U1000 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (415 V) 4 kW(440 V) 4 kW(500 V) 5.5 kW(690 V) 5.5 kW(380 / 400 V) 4 kW(220 / 230 / 240 V) 2.2 kW |
| rated control circuit voltage (uc) | DC Operation 24 V |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Rigid 1/2x 1 ... 2.5 mm2 |
| rated operational current ac-1 (ie) | (690 V) 40 °C 25 A(690 V) 60 °C 25 A(690 V) 70 °C 22 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 9 A(440 V) 60 °C 9 A(500 V) 60 °C 9.5 A(690 V) 60 °C 7 A(380 / 400 V) 60 °C 9 A(220 / 230 / 240 V) 60 °C 9 A |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 35 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5 ... 300 Hz 4 g closed position / 2 g open position |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 Afor 1 s -empty- A |
