ABB
1SBL136561R2100

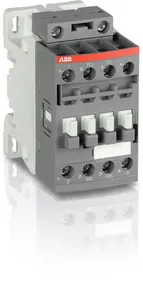

Product type: AF09ZB-22-00-21
AF09ZB-22-00-21 24-60V50/60HZ 20-60VDC Contactor
RoHS Compliant
Description
The AF09ZB-22-00-21 is a 4 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 4 kW / 400 V AC (AC-3) and switching power circuits up to 25 A (AC-1) or 25 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. AF09ZB-22-00-21
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
- AF Contactors
- AF09
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL136561R2100.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.31 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | FR |
| Dimensions (WxHxD) | 87x47x79 mm |
| EAN code | 3471523124813 |
| Product group | SR |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_SE-96551 |
| kc certificate | https://library.abb.com/d/KC_HW02016-15007C |
| ul certificate | https://library.abb.com/d/UL_20120918-E319322-3-1 |
| ccc certificate | https://library.abb.com/d/CCC_2010010304445624 |
| cqc certificate | https://library.abb.com/d/CQC2010010304445624 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B03597 |
| ul listing card | https://library.abb.com/d/UL_E319322 |
| gost certificate | https://library.abb.com/d/GOST_POCCFR.ME77.B07175.pdf |
| rohs information | https://library.abb.com/d/1SBD250001U1000 |
| climatic withstand | Category B according to IEC 60947-1 Annex Q |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| wire stripping length | Control Circuit 10 mmMain Circuit 10 mm |
| ambient air temperature | Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air -40 ... 70 °C |
| environmental information | https://library.abb.com/d/1SBD250167E1000 |
| general use rating ul/csa | (600 V AC) 25 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 2 |
| number of main contacts no | 2 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250001U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001253 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm2Flexible with Insulated Ferrule 1x 0.75 ... 4 mm2Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 6 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250032U1000 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (400 V) 4 kW(415 V) 4 kW(440 V) 4 kW(500 V) 5.5 kW(690 V) 5.5 kW(380 / 400 V) 4 kW(220 / 230 / 240 V) 2.2 kW |
| rated control circuit voltage (uc) | 50 Hz 24 ... 60 V60 Hz 24 ... 60 VDC Operation 20 ... 60 V |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Rigid 1/2x 1 ... 2.5 mm2 |
| rated operational current ac-1 (ie) | (690 V) 40 °C 25 A(690 V) 60 °C 25 A(690 V) 70 °C 22 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 9 A(440 V) 60 °C 9 A(500 V) 60 °C 9.5 A(690 V) 60 °C 7 A(380 / 400 V) 60 °C 9 A(220 / 230 / 240 V) 60 °C 9 A |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 35 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 Afor 1 s -empty- A |
