ABB
1SBL137082R1322
Product type: AFS09-30-22-13

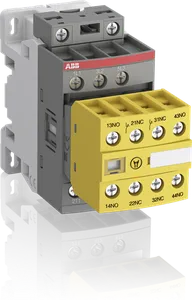

AFS09-30-22-13 100-250V50/60HZ-DC Contactor
Description
The AFS09-30-22-13 is a 3 pole - 690 V IEC or 600 V UL contactor with fixed 2 N.O + 2 N.C. front mounted auxiliary contact blocks with screw connections, controlling motors up to 4 kW / 400 V AC (AC-3) or 5 hp / 480 V UL and switching power circuits up to 25 A (AC-1) or 25 A UL general use. AFS contactors can be easily integrated in machine manufacturer’s systems complying with main standards EN ISO 13849 and EN 62061 - guaranteeing the safe use of your machinery and equipment. An easily identifiable yellow low energy auxiliary contact block ensures the status feedback circuits required in machine safety applications. Thanks to the AF technology, the contactor has a wide control voltage range (100 ... 250 V), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories. AFS09-30-22-13
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
- AFS Contactors
- AFS09
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL137082R1322.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.32 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | FR |
| Dimensions (WxHxD) | 87x47x113 mm |
| EAN code | 3471523157033 |
| Product group | SB |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| standards | IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_SE-96551 |
| gl certificate | https://library.abb.com/d/DNV-GL_TAE00001AF-3 |
| abs certificate | https://library.abb.com/d/ABS_20-2060694-PDA |
| ccc certificate | https://library.abb.com/d/CCC_2010010304445624 |
| cqc certificate | https://library.abb.com/d/CQC2010010304445624 |
| cul certificate | https://library.abb.com/d/UL_20180227_E312527_7_1 |
| eac certificate | https://library.abb.com/d/EAC_RUC-FRME77B03199 |
| ul listing card | https://library.abb.com/d/E312527 |
| rina certificate | https://library.abb.com/d/RINA_ELE240318XG |
| rmrs certificate | https://library.abb.com/d/RMRS_1802705280 |
| rohs information | https://library.abb.com/d/1SBD250022U1000 |
| dimension diagram | https://library.abb.com/d/DNV_TAE00001AF-4 |
| e-number (sweden) | 3210661 |
| climatic withstand | Category B according to IEC 60947-1 Annex Q |
| e-number (finland) | 3708062 |
| rated frequency (f) | Auxiliary Circuit 50 / 60 HzMain Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| mounting on din rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| wire stripping length | Auxiliary Circuit 10 mmControl Circuit 10 mmMain Circuit 10 mm |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (120 V AC) Single Phase 3/4 hp(200 ... 208 V AC) Three Phase 2 hp(220 ... 240 V AC) Three Phase 2 hp(240 V AC) Single Phase 1-1/2 hp(440 ... 480 V AC) Three Phase 5 hp(550 ... 600 V AC) Three Phase 7-1/2 hp |
| tightening torque ul/csa | Auxiliary Circuit 11 in·lbControl Circuit 11 in·lbMain Circuit 13 in·lb |
| general use rating ul/csa | (600 V AC) 25 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
| rated operational voltage | Auxiliary Circuit 690 VMain Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250022U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001253 |
| number of auxiliary contacts nc | 2 |
| number of auxiliary contacts no | 2 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm2Flexible with Insulated Ferrule 1x 0.75 ... 4 mm2Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 6 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250044U1000 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (400 V) 4 kW(415 V) 4 kW(440 V) 4 kW(500 V) 5.5 kW(690 V) 5.5 kW(380 / 400 V) 4 kW(220 / 230 / 240 V) 2.2 kW |
| rated control circuit voltage (uc) | 50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V |
| rated operational power ac-3e (pe) | (415 V) 4 kW(440 V) 4 kW(500 V) 5.5 kW(690 V) 5.5 kW(380 / 400 V) 4 kW(220 / 230 / 240 V) 2.2 kW |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Rigid 1/2x 1 ... 2.5 mm2 |
| rated operational current ac-1 (ie) | (690 V) 40 °C 25 A(690 V) 60 °C 25 A(690 V) 70 °C 22 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 9 A(440 V) 60 °C 9 A(500 V) 60 °C 9.5 A(690 V) 60 °C 7 A(380 / 400 V) 60 °C 9 A(220 / 230 / 240 V) 60 °C 9 A |
| rated operational current ac-15 (ie) | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A |
| rated operational current ac-3e (ie) | (415 V) 60 °C 9 A(440 V) 60 °C 9 A(500 V) 60 °C 9.5 A(690 V) 60 °C 7 A(380 / 400 V) 60 °C 9 A(220 / 230 / 240 V) 60 °C 9 A |
| rated operational current dc-13 (ie) | (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W |
| connecting capacity auxiliary circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 2.5 mm2 |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour(AC-15) 1200 cycles per hour(AC-2 / AC-4) 300 cycles per hour(AC-3) 1200 cycles per hour(DC-13) 900 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| resistance to shock acc. to iec 60068-2-27 | Closed, Shock Direction: A 30 gClosed, Shock Direction: B1 25 gClosed, Shock Direction: B2 15 gClosed, Shock Direction: C1 25 gClosed, Shock Direction: C2 25 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 35 Aacc. to IEC 60947-5-1, q = 40 °C 16 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5 ... 300 Hz 4 g closed position / 2 g open position |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 Afor 0.1 s 140 Afor 1 s 100 A |
