ABB

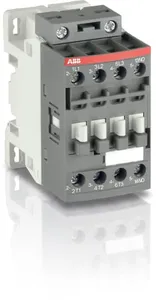

1SBL156061R2201
Product type: AF12ZB-30-01-22
AF12ZB-30-01-22 Schütz 48-130V 50/60Hz / DC mit Bahnzulassung
Description
Die 3-poligen AFZB-Schütze erfüllen die neuesten Normen für rollende Eisenbahnfahrzeuge und ermöglichen den Einbau in Fahrgast- oder Führerständen von Zügen, die häufig in Tunneln oder Unterführungen verkehren. Sie schalten Leistungskreise mit Motoren, leicht induktiven oder nicht-induktiven Lasten. Dabei erfüllen sie alle wichtigen Normen für rollendes Material: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 und anwendbare Teile der Normen EN 50155, Schock- und Vibrationsfestigkeit gemäß IEC 61373 Kat. 1, Klasse B. Ebenso erreichen sie die höchsten Stufen im Brand- und Rauchverhalten bei Einhaltung der europäischen Norm EN 45545-2 (HL2-Gefahrenstufen) bei Gruppenmontage. Die AFZB-Schütze können kurzen Spannungseinbrüchen und Spannungsabfällen (gemäß SEMI F47-0706) widerstehen. Alle integrierten oder nachträglich angebaute Hilfsöffnerkontakte sind als Mirrorkontakte nach IEC60947-5-1 Anhang L ausgeführt. Weiterhin besitzen sie einen eingebauten Überspannungsschutz und benötigen keine zusätzlichen Löschglieder.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL156061R2201.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.31 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FR |
| Dimensions (WxHxD) | 0.045x0.086x0.077 m |
| EAN code | 3471523123823 |
| Product group | SR |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| nema size | 0 |
| standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_SE-96551 |
| kc certificate | https://library.abb.com/d/KC_HW02016-15005C |
| ul certificate | https://library.abb.com/d/UL_20140305-E312527_7_1 |
| ccc certificate | https://library.abb.com/d/CCC_2010010304445624 |
| cqc certificate | https://library.abb.com/d/CQC2010010304445624 |
| cul certificate | https://library.abb.com/d/UL_20180227_E312527_7_1 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B03597 |
| ul listing card | https://library.abb.com/d/E312527 |
| gost certificate | https://library.abb.com/d/GOST_POCCFR.ME77.B07175.pdf |
| rohs information | https://library.abb.com/d/1SBD250002U1000 |
| climatic withstand | Category B according to IEC 60947-1 Annex Q |
| rated frequency (f) | Auxiliary Circuit 50 / 60 HzMain Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| mounting on din rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| wire stripping length | Main Circuit 10 mm |
| horsepower rating nema | (115 V AC) Single Phase 1 Hp(200 V AC) Three Phase 3 Hp(230 V AC) Single Phase 2 Hp(230 V AC) Three Phase 3 Hp(460 V AC) Three Phase 5 Hp(575 V AC) Three Phase 5 Hp |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (120 V AC) Single Phase 1 hp(200 ... 208 V AC) Three Phase 3 hp(220 ... 240 V AC) Three Phase 3 hp(240 V AC) Single Phase 2 hp(440 ... 480 V AC) Three Phase 7-1/2 hp(550 ... 600 V AC) Three Phase 10 hp |
| environmental information | https://library.abb.com/d/1SBD250167E1000, https://library.abb.com/d/1SBC100222M0201 |
| general use rating ul/csa | (600 V AC) 28 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 106 A |
| rated operational voltage | Auxiliary Circuit 690 VMain Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| continuous current rating nema | 18 A |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250002U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001253 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 0.75 ... 6 mm2Flexible with Insulated Ferrule 1x 0.75 ... 4 mm2Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm2Rigid 1/2x 1 ... 6 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250033U1000 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (415 V) 5.5 kW(440 V) 5.5 kW(500 V) 7.5 kW(690 V) 7.5 kW(380 / 400 V) 5.5 kW(220 / 230 / 240 V) 3 kW |
| rated control circuit voltage (uc) | 50 Hz 48 ... 130 V60 Hz 48 ... 130 VDC Operation 48 ... 130 V |
| rated operational power ac-3e (pe) | (415 V) 5.5 kW(440 V) 5.5 kW(500 V) 7.5 kW(690 V) 7.5 kW(380 / 400 V) 5.5 kW(220 / 230 / 240 V) 3 kW |
| rated operational current ac-1 (ie) | (690 V) 40 °C 28 A(690 V) 60 °C 28 A(690 V) 70 °C 24 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 12 A(440 V) 60 °C 12 A(500 V) 60 °C 12.5 A(690 V) 60 °C 9 A(380 / 400 V) 60 °C 12 A(220 / 230 / 240 V) 60 °C 12 A |
| rated operational current ac-15 (ie) | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A |
| rated operational current ac-3e (ie) | (415 V) 60 °C 12 A(440 V) 60 °C 12 A(500 V) 60 °C 12.5 A(690 V) 60 °C 9 A(380 / 400 V) 60 °C 12 A(220 / 230 / 240 V) 60 °C 12 A |
| rated operational current dc-13 (ie) | (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour(AC-15) 1200 cycles per hour(AC-2 / AC-4) 300 cycles per hour(AC-3) 1200 cycles per hour(DC-13) 900 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 35 Aacc. to IEC 60947-5-1, q = 40 °C 16 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 35 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 Afor 0.1 s 140 Afor 1 s 100 A |
