Product type: TAL16-30-10RT 17-32V DC

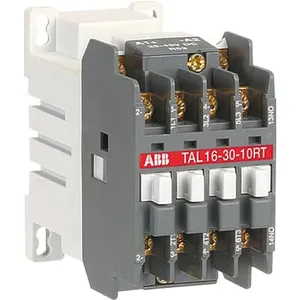

TAL16-30-10RT 17-32V DC Contactor
Description
TAL16 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The TAL..RT contactors are the Ring Tongue terminal version of the TAL... range. The TAL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. TAL... contactors are fitted with low consumption DC coils and offer a large coil voltage range.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL183060R5110.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.52 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | |
| Dimensions (WxHxD) | 44x78x97 mm |
| EAN code | 3471522362711 |
| Product group | SR |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NO Contact Opening 10 ... 17 msBetween Coil Energization and NO Contact Closing 50 ... 100 ms |
| terminal type | Ring-Tongue Terminals |
| cb certificate | https://library.abb.com/d/CB_FR_617239C |
| cqc certificate | https://library.abb.com/d/CQC2012010304534830 |
| csa certificate | https://library.abb.com/d/CSA_1041746 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B01010 |
| coil consumption | Holding DC (Umin / Umax) 2.5 / 8.5 WPull-in DC (Umin / Umax) 2.5 / 8.5 W |
| gost certificate | https://library.abb.com/d/GOST_POCCFRME77B07175 |
| rohs information | https://library.abb.com/d/1SBD250806U1000 |
| dimension diagram | https://library.abb.com/d/FPTE307902 |
| climatic withstand | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| rated frequency (f) | Supply Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP10acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| ambient air temperature | Close to Contactor without Thermal O/L Relay -40 ... 55 °CClose to Contactor without Thermal O/L Relay (Ucmin-Ucmax) according to IEC 60077 -40 ... +70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (200 ... 208 V AC) Three Phase 5 hp(220 ... 240 V AC) Three Phase 5 hp(440 ... 480 V AC) Three Phase 10 hp(550 ... 600 V AC) Three Phase 15 hp |
| environmental information | https://library.abb.com/d/1SBD250121E1004 |
| general use rating ul/csa | (600 V AC) 30 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 250 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 100 A |
| rated operational voltage | Auxiliary Circuit 690 VMain Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated making capacity ac-3 | 10 x Ie AC-3 |
| rated breaking capacity ac-3 | 8 x Ie AC-3 |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250804U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001613 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 1 |
| connecting capacity main circuit | Flexible with Cable Lug 0.75 ... 2.5 mm2Rigid Cable 0.75 ... 2.5 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250821U1000 |
| short-circuit protective devices | Auxiliary Circuit - gG Type Fuses 10 AgG Type Fuses 32 A |
| data sheet, technical information | https://library.abb.com/d/1SNC001003C0202 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (415 V) 9 kW(440 V) 9 kW(500 V) 9 kW(690 V) 9 kW(380 / 400 V) 7.5 kW(220 / 230 / 240 V) 4 kW |
| rated control circuit voltage (uc) | DC Operation 17 ... 32 V |
| rated operational current ac-1 (ie) | (690 V) 40 °C 30 A(690 V) 55 °C 27 A(690 V) 70 °C 23 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 17 A(440 V) 55 °C 16 A(500 V) 55 °C 14 A(690 V) 55 °C 10 A(380 / 400 V) 55 °C 17 A(220 / 230 / 240 V) 55 °C 17 |
| rated operational current ac-15 (ie) | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(380 / 400 V) 3 A |
| rated operational current dc-13 (ie) | (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 2 / 144 A(125 V) 1.1 / 138 A(250 V) 0.55 / 138 A |
| connecting capacity auxiliary circuit | Rigid or Flexible with Cable Lug 0.75 ... 2.5 mm2 |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour(AC-2 / AC-4) 300 cycles per hour(AC-3) 1200 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| resistance to shock acc. to iec 60068-2-27 | Closed, Shock Direction: A 20 gClosed, Shock Direction: B1 15 gClosed, Shock Direction: C1 20 gClosed, Shock Direction: C2 14 gOpen, Shock Direction: A 10 gOpen, Shock Direction: B1 5 gOpen, Shock Direction: C1 8 gOpen, Shock Direction: C2 8 gShock Direction: B2 10 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 30 Aacc. to IEC 60947-5-1, q = 40 °C 16 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 140 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 30 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 60 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 80 A |
| connecting terminals (delivered in open position) main poles | M 3.5 (+,-) pozidriv 2 screw with conic washer |
