Product type: AF26Z-30-00K-23

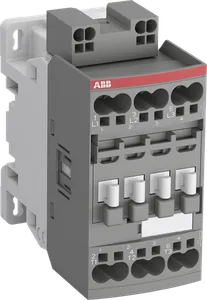

AF26Z-30-00K-23 Schütz 100-250V 50/60Hz /DC / 3-polig Push-In Anschlussklemme
Description
Die 3-poligen Schütze AF26Z sind zum Schalten von Leistungskreisen mit Motoren, leicht induktiven oder nicht-induktiven Lasten ausgelegt. Sie besitzen eine elektronische Spulenschnittstelle, die eine sehr breite Steuerspannung realisieren kann. Dadurch können auch große Steuerspannungsschwankungen bewältigt werden. AFZ-Schütze können kurzen Spannungseinbrüchen und Spannungsabfällen (gemäß SEMI F47-0706) widerstehen. Alle nachträglich anbaubaren Öffner-Hilfskontakte sind als Mirrorkontakte nach IEC60947-5-1 Anhang L ausgeführt. Weiterhin besitzen sie einen eingebauten Überspannungsschutz und benötigen keine zusätzlichen Löschglieder. Weiteres Zubehör wie Zeitglieder, Verdrahtungshilfen sowie Verriegelungsglieder u.a. ergänzen das Sortiment.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL236005R2300.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.355 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FR |
| Dimensions (WxHxD) | 0.045x0.092x0.086 m |
| EAN code | 3471523156432 |
| Product group | SB |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| nema size | 1 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| terminal type | Push-in Spring Terminals |
| cb certificate | https://library.abb.com/d/CB_SE-96552M1 |
| gl certificate | https://library.abb.com/d/DNV-GL_TAE00001AF-3 |
| abs certificate | https://library.abb.com/d/ABS_20-2060694-PDA |
| ccc certificate | https://library.abb.com/d/CCC_2010010304445623 |
| cqc certificate | https://library.abb.com/d/CQC2010010304445623, https://library.abb.com/d/CQC2020010304294316 |
| cul certificate | https://library.abb.com/d/UL_20180227_E312527_7_1 |
| rina certificate | https://library.abb.com/d/RINA_ELE240318XG |
| rmrs certificate | https://library.abb.com/d/RMRS_1802705280 |
| rohs information | https://library.abb.com/d/1SBD250000U1000 |
| dimension diagram | https://library.abb.com/d/DNV_TAE00001AF-4 |
| climatic withstand | Category B according to IEC 60947-1 Annex Q |
| e-number (finland) | 3707900 |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| mounting on din rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| wire stripping length | Control Circuit 10 mmMain Circuit 14 mm |
| horsepower rating nema | (115 V AC) Single Phase 2 Hp(200 V AC) Three Phase 7-1/2 Hp(230 V AC) Single Phase 3 Hp(230 V AC) Three Phase 7-1/2 Hp(460 V AC) Three Phase 10 Hp(575 V AC) Three Phase 10 Hp |
| ambient air temperature | Close to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (120 V AC) Single Phase 2 hp(200 ... 208 V AC) Three Phase 7-1/2 hp(220 ... 240 V AC) Three Phase 7-1/2 hp(240 V AC) Single Phase 3 hp(440 ... 480 V AC) Three Phase 15 hp(550 ... 600 V AC) Three Phase 20 hp |
| general use rating ul/csa | (600 V AC) 42 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| continuous current rating nema | 27 A |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250000U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001254, https://library.abb.com/d/2020980304001052 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 1 ... 6 mm2Flexible with Insulated Ferrule 1/2x 1 ... 6 mm2Flexible 1/2x 1 ... 6 mm2Rigid 1/2x 1 ... 10 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250031U1000 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (415 V) 11 kW(440 V) 15 kW(500 V) 15 kW(690 V) 15 kW(380 / 400 V) 11 kW(220 / 230 / 240 V) 6.5 kW |
| rated control circuit voltage (uc) | 50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V |
| rated operational power ac-3e (pe) | (415 V) 11 kW(440 V) 15 kW(500 V) 15 kW(690 V) 15 kW(380 / 400 V) 11 kW(220 / 230 / 240 V) 6.5 kW |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 0.5 ... 2.5 mm2Flexible with Insulated Ferrule 1/2x 0.5 ... 1.5 mm2Flexible 1/2x 0.5 ... 2.5 mm2Rigid 1/2x 1 ... 2.5 mm2 |
| rated operational current ac-1 (ie) | (690 V) 40 °C 45 A(690 V) 60 °C 40 A(690 V) 70 °C 32 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 26 A(440 V) 60 °C 26 A(500 V) 60 °C 23 A(690 V) 60 °C 17 A(380 / 400 V) 60 °C 26 A(220 / 230 / 240 V) 60 °C 26 A |
| rated operational current ac-3e (ie) | (415 V) 60 °C 26 A(440 V) 60 °C 26 A(500 V) 60 °C 23 A(690 V) 60 °C 17 A(380 / 400 V) 60 °C 26 A(220 / 230 / 240 V) 60 °C 26 A |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 1200 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 50 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5 ... 300 Hz 4 g closed position / 2 g open position |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 Afor 1 s -empty- A |
