ABB
1SBL271001R8400

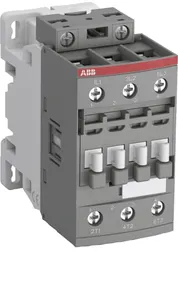

Product type: AFC30-30-00-84
AFC30-30-00-84 Schütz 110V 50Hz / 110-120V 60Hz
Description
Das AFC30-30-00-84 ist ein 3-poliges - 690 V IEC oder 600 V UL Schütz mit Schraubklemmen, hauptsächlich zur Steuerung von Stromkreisen bis zu 15kW / 400 V AC (AC-3) oder 20 hp / 480 V AC UL und 50 A (AC-1) oder 50 A UL ‚General Use‘. Innerhalb der AF-Plattform bieten die AFC-Schütze eine optimierte Betriebszeit für AC-gesteuerte Anwendungen mit elektromagnetischer Spule (Steuerspannung: 110V AC 50Hz / 110…120V AC 60Hz). AFC-Schütze sind in Blockbauweise ausgeführt und können mit zusätzlichen Hilfskontaktblöcken und einer breiten Palette von zusätzlichem Zubehör leicht erweitert werden. Alle zusätzlich angebauten Hilfsöffnerkontakte sind als Spiegelkontakte nach IEC60947-4-1 Anhang F ausgeführt.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL271001R8400.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.357 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | CN |
| Dimensions (WxHxD) | 0.045x0.086x0.086 m |
| EAN code | 3471523014961 |
| Product group | SB |
| eclass | V11.0 : 27371003 |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| standards | IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14 |
| operate time | Between Coil De-energization and NC Contact Closing 9 ... 20 msBetween Coil De-energization and NO Contact Opening 4 ... 18 msBetween Coil Energization and NC Contact Opening 7 ... 21 msBetween Coil Energization and NO Contact Closing 10 ... 26 ms |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_SE-96552M1 |
| ul certificate | https://library.abb.com/d/UL_20191021-E312527_7_1 |
| cqc certificate | https://library.abb.com/d/CQC2010010304445623 |
| rohs information | https://library.abb.com/d/1SBD251089E1000 |
| climatic withstand | Category B according to IEC 60947-1 Annex Q |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| wire stripping length | Control Circuit 10 mmMain Circuit 14 mm |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 60 °CClose to Contactor without Thermal O/L Relay (Uc) -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (120 V AC) Single Phase 2 hp(200 ... 208 V AC) Three Phase 10 hp(220 ... 240 V AC) Three Phase 10 hp(240 V AC) Single Phase 5 hp(440 ... 480 V AC) Three Phase 20 hp(550 ... 600 V AC) Three Phase 25 hp |
| tightening torque ul/csa | Control Circuit 11 in·lbMain Circuit 22 in·lb |
| general use rating ul/csa | (600 V AC) 50 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250024U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001254 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 1.5 ... 10 mm2Flexible with Insulated Ferrule 1x 1.5 ... 10 mm2Flexible with Insulated Ferrule 2x 1.5 ... 4 mm2Rigid 1/2x 2.5 ... 10 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250045U1000 |
| data sheet, technical information | https://library.abb.com/d/1SBC100219C0201 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (400 V) 15 kW(415 V) 15 kW(440 V) 18.5 kW(500 V) 18.5 kW(690 V) 18.5 kW(380 / 400 V) 15 kW(220 / 230 / 240 V) 9 kW |
| rated control circuit voltage (uc) | 50 Hz 110 V60 Hz 110 ... 120 V |
| rated operational power ac-3e (pe) | (415 V) 15 kW(440 V) 18.5 kW(500 V) 18.5 kW(690 V) 18.5 kW(380 / 400 V) 15 kW(220 / 230 / 240 V) 9 kW |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Rigid 1/2x 1 ... 2.5 mm2 |
| rated operational current ac-1 (ie) | (690 V) 40 °C 50 A(690 V) 60 °C 42 A(690 V) 70 °C 37 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 32 A(440 V) 60 °C 32 A(500 V) 60 °C 28 A(690 V) 60 °C 21 A(380 / 400 V) 60 °C 32 A(220 / 230 / 240 V) 60 °C 33 A |
| rated operational current ac-3e (ie) | (415 V) 60 °C 32 A(440 V) 60 °C 32 A(500 V) 60 °C 28 A(690 V) 60 °C 21 A(380 / 400 V) 60 °C 32 A(220 / 230 / 240 V) 60 °C 33 A |
| connecting capacity auxiliary circuit | Rigid 1/2x 1 ... 2.5 mm2 |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour(AC-15) 0 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 1200 cycles per hour(DC-13) 0 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| resistance to shock acc. to iec 60068-2-27 | Closed, Shock Direction: B1 25 gOpen, Shock Direction: B1 5 gShock Direction: A 30 gShock Direction: B2 15 gShock Direction: C1 25 gShock Direction: C2 25 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 50 Aacc. to IEC 60947-5-1, q = 40 °C 16 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5 ... 300 Hz 4 g closed position / 2 g open position |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 Afor 1 s -empty- A |
