Product type: AF30B-30-00RT-14

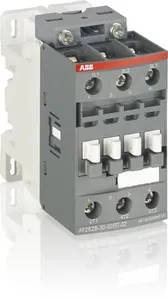

AF30B-30-00RT-14 250-500V50/60HZ-DC Contactor
Description
The AF30B-30-00RT-14 is a 3 pole - 690 V IEC or 600 UL contactor with Ring-Tongue Terminals, controlling motors up to 15 kW / 400 V AC (AC-3) or 20 hp / 480 V UL and switching power circuits up to 50 A (AC-1) or 50 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL277060R1400.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.36 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | |
| Dimensions (WxHxD) | 45x86x86 mm |
| EAN code | 3471523126442 |
| Product group | SR |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| terminal type | Ring-Tongue Terminals |
| cb certificate | https://library.abb.com/d/CB_SE-96552 |
| ul certificate | https://library.abb.com/d/UL_20121122-E312527_9_5 |
| ccc certificate | https://library.abb.com/d/CCC_2010010304445623 |
| cqc certificate | https://library.abb.com/d/CQC2010010304445623 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B03597 |
| ul listing card | https://library.abb.com/d/UL_E312527 |
| rohs information | https://library.abb.com/d/1SBD250004U1000 |
| climatic withstand | Category B according to IEC 60947-1 Annex Q |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| mounting on din rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (120 V AC) Single Phase 2 hp(200 ... 208 V AC) Three Phase 10 hp(220 ... 240 V AC) Three Phase 10 hp(240 V AC) Single Phase 5 hp(440 ... 480 V AC) Three Phase 20 hp(550 ... 600 V AC) Three Phase 25 hp |
| environmental information | https://library.abb.com/d/1SBD250165E1000 |
| general use rating ul/csa | (600 V AC) 50 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250004U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001254 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250035U1000 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (415 V) 15 kW(440 V) 18.5 kW(500 V) 18.5 kW(690 V) 18.5 kW(380 / 400 V) 15 kW(220 / 230 / 240 V) 9 kW |
| rated control circuit voltage (uc) | 50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V |
| rated operational power ac-3e (pe) | (415 V) 15 kW(440 V) 18.5 kW(500 V) 18.5 kW(690 V) 18.5 kW(380 / 400 V) 15 kW(220 / 230 / 240 V) 9 kW |
| rated operational current ac-1 (ie) | (690 V) 40 °C 50 A(690 V) 60 °C 42 A(690 V) 70 °C 37 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 32 A(440 V) 60 °C 32 A(500 V) 60 °C 28 A(690 V) 60 °C 21 A(380 / 400 V) 60 °C 32 A(220 / 230 / 240 V) 60 °C 33 A |
| rated operational current ac-3e (ie) | (415 V) 60 °C 32 A(440 V) 60 °C 32 A(500 V) 60 °C 28 A(690 V) 60 °C 21 A(380 / 400 V) 60 °C 32 A(220 / 230 / 240 V) 60 °C 33 A |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 1200 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 50 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A |
