Product type: TAL30-30-01 17-32V DC

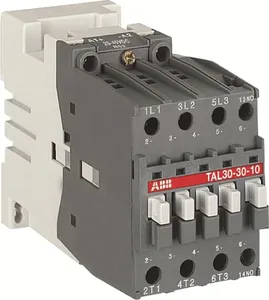

TAL30-30-01-51 Schütz 17-32V DC mit Bahnzulassung
Description
Die 3-poligen TAL30 Schütze werden hauptsächlich zur Steuerung von Drehstrommotoren und im Allgemeinen zur Steuerung von Leistungskreisen bis 690V AC oder 220V DC eingesetzt. Die Schütze können auch für viele andere Anwendungen wie Isolierung, Kondensatorschaltung, Beleuchtung eingesetzt werden. Die 1-stöckigen, 3-poligen Schütze der Serie AL... sind in Blockbauweise ausgeführt. - Hauptpole und Hilfskontaktblöcke: 3 Hauptpole, 1 eingebauter Hilfskontakt, die Installation von zusätzlichen vorderen oder seitlichen Anbau-Hilfskontaktblöcke ist möglich. - Steuerkreis: Gleichstrombetrieb mit Dauermagnetkreis und Weitspannungsbereich. Die Polarität an den Spulenanschlüssen (A1+ und A2-) muss beachtet werden. Die Schütze besitzen eine Bahnzulassung.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL283061R5101.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.85 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | BG |
| Dimensions (WxHxD) | 0.054x0.09x0.125 m |
| EAN code | 3471522324511 |
| Product group | SR |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 18 ... 28 msBetween Coil De-energization and NO Contact Opening 12 ... 18 msBetween Coil Energization and NC Contact Opening 25 ... 75 msBetween Coil Energization and NO Contact Closing 55 ... 110 ms |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_FR3452-60022335-515371E |
| ccc certificate | https://library.abb.com/d/CCC_2004010304112235 |
| cqc certificate | https://library.abb.com/d/CQC2004010304112235 |
| csa certificate | https://library.abb.com/d/CSA_1033838_LR056745 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B01010 |
| coil consumption | Holding DC (Umin / Umax) 2.7 / 9 WPull-in DC (Umin / Umax) 2.7 / 9 W |
| gost certificate | https://library.abb.com/d/GOST_POCCFRME77B07175 |
| rohs information | https://library.abb.com/d/1SBD250804U1000 |
| dimension diagram | https://library.abb.com/d/FPTE307864 |
| climatic withstand | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| rated frequency (f) | Supply Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| mechanical durability | 10 million |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °CClose to Contactor without Thermal O/L Relay -40 ... 55 °CClose to Contactor without Thermal O/L Relay (Ucmin-Ucmax) according to IEC 60077 -40 ... +70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (200 ... 208 V AC) Three Phase 10 hp(220 ... 240 V AC) Three Phase 10 hp(440 ... 480 V AC) Three Phase 25 hp(550 ... 600 V AC) Three Phase 30 hp |
| environmental information | https://library.abb.com/d/1SBD250122E1002 |
| general use rating ul/csa | (600 V AC) 50 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 470 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 175 A |
| rated operational voltage | Auxiliary Circuit 690 VMain Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated making capacity ac-3 | 10 x Ie AC-3 |
| rated breaking capacity ac-3 | 8 x Ie AC-3 |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250804U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001612 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Cable End 2.5 ... 10 mm2Rigid Cable 2.5 ... 16 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250821U1000 |
| short-circuit protective devices | Auxiliary Circuit - gG Type Fuses 10 AgG Type Fuses 63 A |
| data sheet, technical information | https://library.abb.com/d/1SNC001003C0202 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (415 V) 15 kW(440 V) 18.5 kW(500 V) 18.5 kW(690 V) 15 kW(380 / 400 V) 15 kW(220 / 230 / 240 V) 9 kW |
| rated control circuit voltage (uc) | DC Operation 17 ... 32 V |
| rated operational current ac-1 (ie) | (690 V) 40 °C 55 A(690 V) 55 °C 55 A(690 V) 70 °C 39 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 32 A(440 V) 55 °C 32 A(500 V) 55 °C 28 A(690 V) 55 °C 18 A(380 / 400 V) 55 °C 32 A(220 / 230 / 240 V) 55 °C 33 |
| rated operational current ac-15 (ie) | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(380 / 400 V) 3 A |
| rated operational current dc-13 (ie) | (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 2 / 144 A(125 V) 1.1 / 138 A(250 V) 0.55 / 138 A |
| connecting capacity auxiliary circuit | Flexible with Cable End 0.75 ... 2.5 mm2Rigid Cable 1 ... 4 mm2 |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour(AC-2 / AC-4) 300 cycles per hour(AC-3) 1200 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 8 kV |
| resistance to shock acc. to iec 60068-2-27 | Closed, Shock Direction: A 20 gClosed, Shock Direction: B1 15 gClosed, Shock Direction: C1 20 gClosed, Shock Direction: C2 14 gOpen, Shock Direction: A 10 gOpen, Shock Direction: B1 5 gOpen, Shock Direction: C1 8 gOpen, Shock Direction: C2 8 gShock Direction: B2 10 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 65 Aacc. to IEC 60947-5-1, q = 40 °C 16 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 400 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 65 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 600 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A |
| connecting terminals (delivered in open position) main poles | M 5 (+,-) pozidriv 2 screw with 2x (5.6x6.5 mm) connector |
