ABB
1SBL297001R1300
Product type: AF38-30-00-13

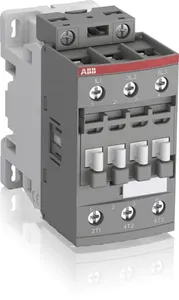

AF38-30-00-13 Schütz 100-250V 50/60Hz / DC
Description
Die 3-poligen AF38-Schütze stehen für die kompakte Baureihe mit AC/DC-Ansteuerung und sehr weiten Spulenspannungsbereichen. Sie schalten Leistungskreise mit Motoren, leicht induktiven oder nicht-induktiven Lasten. Nur 4 Spulen decken Steuerspannungen von 20...500 VDC bis 24...500 VAC ab. Sie besitzen einen integrierten Überspannungsschutz und benötigen keine zusätzliche Löschglieder. Alle nachträglich anbaubare Öffner-Hilfskontakte sind als Mirrorkontakte nach IEC60947-5-1 Anhang L ausgeführt. Weiteres Zubehör wie Zeitglieder, Verdrahtungshilfen sowie Verriegelungsglieder u.a. ergänzen das Sortiment.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL297001R1300.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.31 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FR |
| Dimensions (WxHxD) | 0.045x0.086x0.086 m |
| EAN code | 3471523111530 |
| Product group | SB |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| standards | IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms |
| terminal type | Screw Terminals |
| bv certificate | https://library.abb.com/d/BV_2634H24898B0 |
| cb certificate | https://library.abb.com/d/CB_SE-96552M1 |
| gl certificate | https://library.abb.com/d/DNV-GL_TAE00001AF-3 |
| kc certificate | https://library.abb.com/d/KC_HW02016-15001C |
| lr certificate | https://library.abb.com/d/LRS_1300087E1 |
| ul certificate | https://library.abb.com/d/UL_20140305-E312527_7_1 |
| abs certificate | https://library.abb.com/d/ABS_20-2060694-PDA |
| ccc certificate | https://library.abb.com/d/CCC_2010010304445623 |
| cqc certificate | https://library.abb.com/d/CQC2010010304445623, https://library.abb.com/d/CQC2020010304294316 |
| cul certificate | https://library.abb.com/d/UL_20180227_E312527_7_1 |
| eac certificate | https://library.abb.com/d/EAC_RU_FRME77B03447 |
| ul listing card | https://library.abb.com/d/E312527 |
| gost certificate | https://library.abb.com/d/GOST_POCCFR.ME77.B07175.pdf |
| rina certificate | https://library.abb.com/d/RINA_ELE240318XG |
| rmrs certificate | https://library.abb.com/d/RMRS_1802705280 |
| rohs information | https://library.abb.com/d/1SBD250000U1000 |
| dimension diagram | https://library.abb.com/d/DNV_TAE00001AF-4 |
| e-number (sweden) | 3211386 |
| climatic withstand | Category B according to IEC 60947-1 Annex Q |
| e-number (finland) | 3706309 |
| rated frequency (f) | Main Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| mounting on din rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| wire stripping length | Control Circuit 10 mmMain Circuit 14 mm |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (120 V AC) Single Phase 2 hp(200 ... 208 V AC) Three Phase 10 hp(220 ... 240 V AC) Three Phase 10 hp(240 V AC) Single Phase 5 hp(440 ... 480 V AC) Three Phase 25 hp(550 ... 600 V AC) Three Phase 30 hp |
| tightening torque ul/csa | Control Circuit 11 in·lbMain Circuit 22 in·lb |
| environmental information | https://library.abb.com/d/1SBD250149E1000, https://library.abb.com/d/1SBC100222M0201 |
| general use rating ul/csa | (600 V AC) 50 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250000U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001254, https://library.abb.com/d/2020980304001052 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 1.5 ... 10 mm2Flexible with Insulated Ferrule 1x 1.5 ... 10 mm2Flexible with Insulated Ferrule 2x 1.5 ... 4 mm2Rigid 1/2x 2.5 ... 10 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250031U1000 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (400 V) 18.5 kW(415 V) 18.5 kW(440 V) 22 kW(500 V) 22 kW(690 V) 22 kW(380 / 400 V) 18.5 kW(220 / 230 / 240 V) 11 kW |
| rated control circuit voltage (uc) | 50 Hz 100 ... 250 V60 Hz 100 ... 250 VDC Operation 100 ... 250 V |
| rated operational power ac-3e (pe) | (415 V) 18.5 kW(440 V) 22 kW(500 V) 22 kW(690 V) 22 kW(380 / 400 V) 18.5 kW(220 / 230 / 240 V) 11 kW |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Rigid 1/2x 1 ... 2.5 mm2 |
| rated operational current ac-1 (ie) | (690 V) 40 °C 50 A(690 V) 60 °C 42 A(690 V) 70 °C 37 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 38 A(440 V) 60 °C 38 A(500 V) 60 °C 33 A(690 V) 60 °C 24 A(380 / 400 V) 60 °C 38 A(220 / 230 / 240 V) 60 °C 40 A |
| rated operational current ac-3e (ie) | (415 V) 60 °C 38 A(440 V) 60 °C 38 A(500 V) 60 °C 33 A(690 V) 60 °C 24 A(380 / 400 V) 60 °C 38 A(220 / 230 / 240 V) 60 °C 40 A |
| maximum electrical switching frequency | (AC-1) 600 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 1200 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| resistance to shock acc. to iec 60068-2-27 | Closed, Shock Direction: B1 25 gOpen, Shock Direction: B1 5 gShock Direction: A 30 gShock Direction: B2 15 gShock Direction: C1 25 gShock Direction: C2 25 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 50 A |
| resistance to vibrations acc. to iec 60068-2-6 | 5 ... 300 Hz 4 g closed position / 2 g open position |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 Afor 1 s -empty- A |
