ABB

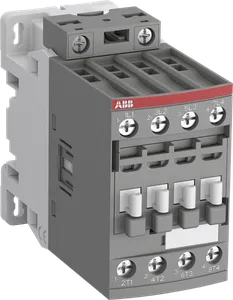

1SBL297561R1400
Product type: AF38B-22-00-14
AF38B-22-00-14 Schütz 250-500V 50/60Hz / DC 4-polig mit Bahnzulassung
Description
Die 3-poligen AFB-Schütze erfüllen die neuesten Normen für rollende Eisenbahnfahrzeuge und ermöglichen den Einbau in Fahrgast- oder Führerständen von Zügen, die häufig in Tunneln oder Unterführungen verkehren. Sie schalten Leistungskreise mit leicht induktiven oder nicht-induktiven Lasten. Dabei erfüllen sie alle wichtigen Normen für rollendes Material: IEC 60947-4-1, IEC 60947-5-1, IEC 60077-1/-2 und anwendbare Teile der Normen EN 50155, Schock- und Vibrationsfestigkeit gemäß IEC 61373 Kat. 1, Klasse B. Ebenso erreichen sie die höchsten Stufen im Brand- und Rauchverhalten bei Einhaltung der europäischen Norm EN 45545-2 (HL2-Gefahrenstufen) bei Gruppenmontage. Die Schütze benötigen dabei eine sehr geringe Halteleistung von nur 1,7W. Alle nachträglich anbaubaren Hilfsöffnerkontakte sind als Mirrorkontakte nach IEC60947-5-1 Anhang L ausgeführt. Weiterhin besitzen sie einen eingebauten Überspannungsschutz und benötigen keine zusätzlichen Löschglieder.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL297561R1400.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.41 KG / psc. |
| Commodity number | 85365080 |
| Country of origin | FR |
| Dimensions (WxHxD) | 0.045x0.086x0.101 m |
| EAN code | 3471523123441 |
| Product group | SR |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| rohs status | Following EU Directive 2011/65/EU |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_SE-96553 |
| kc certificate | https://library.abb.com/d/KC_HW02016-15002C |
| ul certificate | https://library.abb.com/d/UL_20120918-E319322-3-1 |
| ccc certificate | https://library.abb.com/d/CCC_2010010304445623 |
| cqc certificate | https://library.abb.com/d/CQC2010010304445623 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B03597 |
| ul listing card | https://library.abb.com/d/UL_E319322 |
| gost certificate | https://library.abb.com/d/GOST_POCCFR.ME77.B07175.pdf |
| rohs information | https://library.abb.com/d/1SBD250001U1000 |
| climatic withstand | Category B according to IEC 60947-1 Annex Q |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| ambient air temperature | Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air -40 ... 70 °C |
| environmental information | https://library.abb.com/d/1SBD250167E1000 |
| general use rating ul/csa | (600 V AC) 55 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 2 |
| number of main contacts no | 2 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250001U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001254 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Ferrule 1/2x 1.5 ... 16 mm2Flexible with Insulated Ferrule 1x 1.5 ... 16 mm2Flexible with Insulated Ferrule 2x 1.5 ... 16 mm2Rigid 1/2x 1.5 ... 16 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250032U1000 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (400 V) 11 kW(415 V) 11 kW(440 V) 11 kW(500 V) 11 kW(690 V) 9 kW(220 / 230 / 240 V) 5.5 kW |
| rated control circuit voltage (uc) | 50 Hz 250 ... 500 V60 Hz 250 ... 500 VDC Operation 250 ... 500 V |
| connecting capacity control circuit | Flexible with Ferrule 1/2x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm2Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm2Rigid 1/2x 1 ... 2.5 mm2 |
| rated operational current ac-1 (ie) | (1000 V) 60 °C 45 A(690 V) 40 °C 55 A(690 V) 70 °C 37 A |
| rated operational current ac-3 (ie) | (415 V) 60 °C 21.2 A(440 V) 60 °C 20 A(500 V) 60 °C 17.6 A(690 V) 60 °C 10.5 A(380 / 400 V) 60 °C 22 A(220 / 230 / 240 V) 60 °C 23.2 A |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 55 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 300 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 55 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 450 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A |
