Product type: TAL40-30-10RT 17-32V DC

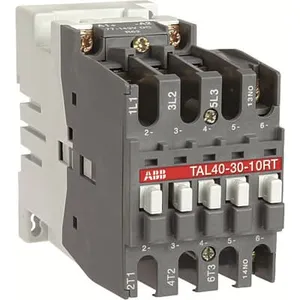

TAL40-30-10RT 17-32V DC Contactor
Description
TAL40 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The TAL... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. TAL... contactors are fitted with low consumption DC coils and offer a large coil voltage range.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL323060R5110.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 0.85 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | FR |
| Dimensions (WxHxD) | 54x90x125.3 mm |
| EAN code | 3471522363718 |
| Product group | SR |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU |
| terminal type | Ring-Tongue Terminals |
| cb certificate | https://library.abb.com/d/CB_FR3551_60022335-515371H |
| ccc certificate | https://library.abb.com/d/CCC_2004010304112235 |
| cqc certificate | https://library.abb.com/d/CQC2004010304112235 |
| csa certificate | https://library.abb.com/d/CSA_1033838_LR056745 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B01010 |
| gost certificate | https://library.abb.com/d/GOST_POCCFRME77B07175 |
| rohs information | https://library.abb.com/d/1SBD250806U1000 |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP10acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| ambient air temperature | Close to Contactor without Thermal O/L Relay -40 ... 55 °CClose to Contactor without Thermal O/L Relay (Ucmin-Ucmax) according to IEC 60077 -40 ... +70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (200 ... 208 V AC) Three Phase 10 hp(220 ... 240 V AC) Three Phase 15 hp(440 ... 480 V AC) Three Phase 30 hp(550 ... 600 V AC) Three Phase 40 hp |
| environmental information | https://library.abb.com/d/1SBD250122E1002 |
| general use rating ul/csa | (600 V AC) 60 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 470 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 175 A |
| rated operational voltage | Auxiliary Circuit 690 VMain Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250804U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001612 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 1 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250821U1000 |
| data sheet, technical information | https://library.abb.com/d/1SNC001003C0202 |
| mounting by screws (not supplied) | 2 x M4 screws placed diagonally |
| rated operational power ac-3 (pe) | (415 V) 18.5 kW(440 V) 22 kW(500 V) 22 kW(690 V) 18.5 kW(380 / 400 V) 18.5 kW(220 / 230 / 240 V) 11 kW |
| rated control circuit voltage (uc) | DC Operation 17 ... 32 V |
| rated operational current ac-1 (ie) | (690 V) 40 °C 60 A(690 V) 55 °C 55 A(690 V) 70 °C 42 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 37 A(440 V) 55 °C 37 A(500 V) 55 °C 33 A(690 V) 55 °C 21 A(380 / 400 V) 55 °C 37 A(220 / 230 / 240 V) 55 °C 40 |
| rated operational current ac-15 (ie) | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(380 / 400 V) 3 A |
| rated operational current dc-13 (ie) | (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 2 / 144 A(125 V) 1.1 / 138 A(250 V) 0.55 / 138 A |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 6 kV |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 400 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 65 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 600 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A |
