ABB
1SBL351022R8000
Product type: UA50-30-00 220-230V 50Hz / 230-240V 60Hz

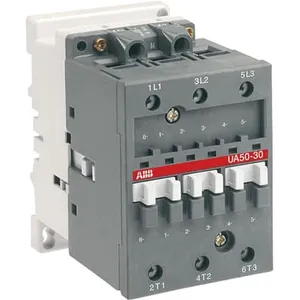

UA50-30-00 220-230V 50Hz / 230-240V 60Hz Contactor
Description
UA50 3-pole contactors for capacitor switching, can be used for the switching of capacitor banks whose inrush current peaks are less than or equal to 100 times nominal rms current. The table below gives the permissible powers according to operational voltage and temperature close to the contactor. It also specifies the maximum peak current Î values accepted by the contactor. The capacitors must be discharged (maximum residual voltage at terminals ≤ 50 V) before being re-energized when the contactors are making. In these conditions, electrical durability of contactors is equal to 100 000 operating cycles. The UA.. series 3-pole contactors are of the block type design. - Main poles: 3 main poles - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
- UA and UA..RA Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL351022R8000.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 1.16 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | FR |
| Dimensions (WxHxD) | 70x110x108 mm |
| EAN code | 3471522084804 |
| Product group | SB |
| eclass | V11.0 : 27371006 |
| etim 4 | EC001079 - Capacitor magnet contactor |
| etim 5 | EC001079 - Capacitor magnet contactor |
| etim 6 | EC001079 - Capacitor contactor |
| etim 7 | EC001079 - Capacitor contactor |
| etim 8 | EC001079 - Capacitor contactor |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NO Contact Opening 4 ... 11 msBetween Coil Energization and NO Contact Closing 8 ... 27 ms |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_CN45340 |
| ul certificate | https://library.abb.com/d/UL_20120830-E312527-10-1 |
| ccc certificate | https://library.abb.com/d/CCC_2018010304128276, https://library.abb.com/d/CCC_2008010304290409 |
| cqc certificate | https://library.abb.com/d/CQC2018010304128276, https://library.abb.com/d/CQC2008010304290409 |
| csa certificate | https://library.abb.com/d/CSA_1033838_LR056745 |
| ul listing card | https://library.abb.com/d/UL_E312527 |
| coil consumption | Average Holding Value 50 / 60 Hz 18 V·AAverage Pull-in Value 50 Hz 180 V·AAverage Pull-in Value 60 Hz 180 V·AHolding at Max. Rated Control Circuit Voltage 50 Hz 18 V·AHolding at Max. Rated Control Circuit Voltage 50 Hz 5.5 WHolding at Max. Rated Control Circuit Voltage 60 Hz 18 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 5.5 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 180 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 210 V·A |
| gost certificate | https://library.abb.com/d/GOST_POCCFRME77B07175 |
| rohs information | https://library.abb.com/d/1SBD250805U1000 |
| climatic withstand | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH75-25 (75 x 25 mm Mounting Rail) acc. to IEC 60715 |
| mechanical durability | 10 million |
| ambient air temperature | Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... 55 °CNear Contactor for Operation in Free Air (Uc) -40 ... 70 °C |
| environmental information | https://library.abb.com/d/1SBD250029E1000 |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250805U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001623, https://library.abb.com/d/2020980304001215 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Cable End 6 ... 16 mm2Rigid Cable 6 ... 25 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250822U1000 |
| data sheet, technical information | https://library.abb.com/d/1SBC101140C0203 |
| mounting by screws (not supplied) | 2 x M6 screws placed diagonally |
| rated control circuit voltage (uc) | 50 Hz 220 ... 230 V60 Hz 230 ... 240 V |
| rated operational power ac-6b (pe) | (230 / 240 V) 40 °C, 50 / 60 Hz 20 kvar(230 / 240 V) 55 °C, 50 / 60 Hz 20 kvar(230 / 240 V) 70 °C, 50 / 60 Hz 19 kvar(400 / 415 V) 40 °C, 50 / 60 Hz 33 kvar(400 / 415 V) 70 °C, 50 / 60 Hz 32 kvar(400 / 415 V) 55 °C, 50 / 60 Hz 33 kvar(440 V) 40 °C, 50 / 60 Hz 36 kvar(440 V) 55 °C, 50 / 60 Hz 36 kvar(440 V) 70 °C, 50 / 60 Hz 35 kvar(500 / 550 V), 40 °C, 50 / 60 Hz 40 kvar(500 / 550 V) 55 °C, 50 / 60 Hz 40 kvar(500 / 550 V) 70 °C, 50 / 60 Hz 40 kvar(690 V) 40 °C, 50 / 60 Hz 55 kvar(690 V) 55 °C, 50 / 60 Hz 55 kvar(690 V) 70 °C, 50 / 60 Hz 52 kvar |
| connecting capacity auxiliary circuit | Flexible with Cable End 0.75 ... 2.5 mm2Rigid Cable 1 ... 4 mm2 |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 8 kV |
| connecting terminals (delivered in open position) main poles | M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector |
