ABB
1SBL357010R7200
Product type: AF50-30-00RT-72

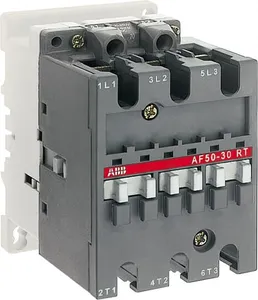

AF50-30-00RT 20-60V DC Contactor
Description
AF50 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits... The AF... contactors are fitted with an electronic coil interface which accepts a wide control voltage range, on AC 50/60 Hz or DC supplies. The same contactor can accept various supply voltages according to the different countries where the electrical equipment will be installed, or some fluctuation in the control voltage due to the local supply or network. The AF... contactors are also fully suitable for operation in AC or DC control circuit liable to voltage interruptions or voltage dip risks. Advantages: - Wide voltage range, e.g. 100 ... 250 V AC and DC - Can manage large voltage variations - Reduced power consumption - Very distinct closing and opening - Noise free - Can withstand voltage interruptions or voltage dips in the control supply (≤ 20 ms). The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL357010R7200.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 1.18 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | FR |
| Dimensions (WxHxD) | 70x110x108 mm |
| EAN code | 3471522245120 |
| Product group | SB |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| nema size | 2 |
| standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22-2 N°14, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011 (on request), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| rohs status | Following EU Directive 2011/65/EU |
| terminal type | Ring-Tongue Terminals |
| kc certificate | https://library.abb.com/d/KC_HW02032-21001B |
| ccc certificate | https://library.abb.com/d/CCC_2018010304134049 |
| cqc certificate | https://library.abb.com/d/CQC2018010304134049, https://library.abb.com/d/CQC2010010304402983 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B01010 |
| gost certificate | https://library.abb.com/d/GOST_POCCFRME77B07175 |
| rohs information | https://library.abb.com/d/1SBD250803U1000 |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP10acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH75-25 (75 x 25 mm Mounting Rail) acc. to IEC 60715 |
| horsepower rating nema | (115 V AC) Single Phase 3 Hp(200 V AC) Three Phase 10 Hp(230 V AC) Single Phase 7-1/2 Hp(230 V AC) Three Phase 15 Hp(460 V AC) Three Phase 25 Hp(575 V AC) Three Phase 25 Hp |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (120 V AC) Single Phase 3 hp(200 ... 208 V AC) Three Phase 15 hp(220 ... 240 V AC) Three Phase 20 hp(240 V AC) Single Phase 7-1/2 hp(440 ... 480 V AC) Three Phase 40 hp(550 ... 600 V AC) Three Phase 50 hp |
| environmental information | https://library.abb.com/d/1SBD250020E1002 |
| general use rating ul/csa | (600 V AC) 80 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to UL/CSA 600 V |
| continuous current rating nema | 45 A |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250803U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001624, https://library.abb.com/d/2020980304001225 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250820U1000 |
| data sheet, technical information | https://library.abb.com/d/1SNC001003C0202 |
| mounting by screws (not supplied) | 2 x M6 screws placed diagonally |
| rated operational power ac-3 (pe) | (415 V) 25 kW(440 V) 25 kW(500 V) 30 kW(690 V) 30 kW(380 / 400 V) 22 kW(220 / 230 / 240 V) 15 kW |
| rated control circuit voltage (uc) | DC Operation 20 ... 60 V |
| rated operational current ac-1 (ie) | (690 V) 40 °C 100 A(690 V) 55 °C 85 A(690 V) 70 °C 70 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 50 A(440 V) 55 °C 45 A(500 V) 55 °C 45 A(690 V) 55 °C 35 A(380 / 400 V) 55 °C 50 A(220 / 230 / 240 V) 55 °C 53 |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 8 kV |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 650 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 110 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 370 A |
