ABB
1SBL377001R6900

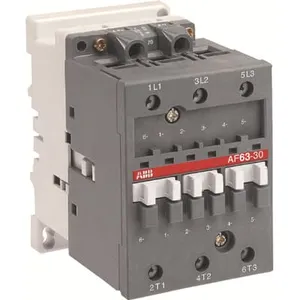

Product type: AF63-30-00-69
AF63-30-00 48-130V 50Hz / 48-130V 60Hz / 48-130V DC Contactor
Description
AF63 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC and 220 V DC. The contactors can also be used for many other applications such as bypass, capacitor switching, lighting, DC power circuits... The AF... contactors are fitted with an electronic coil interface which accepts a wide control voltage range, on AC 50/60 Hz or DC supplies. The same contactor can accept various supply voltages according to the different countries where the electrical equipment will be installed, or some fluctuation in the control voltage due to the local supply or network. The AF... contactors are also fully suitable for operation in AC or DC control circuit liable to voltage interruptions or voltage dip risks. Advantages: - Wide voltage range, e.g. 100 ... 250 V AC and DC - Can manage large voltage variations - Reduced power consumption - Very distinct closing and opening - Noise free - Can withstand voltage interruptions or voltage dips in the control supply (≤ 20 ms). The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: AC or DC operated - Accessories: a wide range of accessories is available.
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL377001R6900.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 1.18 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | FR |
| Dimensions (WxHxD) | 70x110x108 mm |
| EAN code | 3471522114990 |
| Product group | SB |
| eclass | V11.0 : 27371003 |
| etim 4 | EC000066 - Magnet contactor, AC-switching |
| etim 5 | EC000066 - Magnet contactor, AC-switching |
| etim 6 | EC000066 - Power contactor, AC switching |
| etim 7 | EC000066 - Power contactor, AC switching |
| etim 8 | EC000066 - Power contactor, AC switching |
| unspsc | 39121529 |
| standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508, CSA C22-2 N°14, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011 (on request), IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives. |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NC Contact Closing 35 ... 115 msBetween Coil De-energization and NO Contact Opening 30 ... 110 msBetween Coil Energization and NO Contact Closing 30 ... 100 ms |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_CN45489 |
| kc certificate | https://library.abb.com/d/KC_HW02032-21002B |
| ul certificate | https://library.abb.com/d/UL_20120830-E312527-10-1 |
| ccc certificate | https://library.abb.com/d/CCC_2018010304134049, https://library.abb.com/d/CCC_2010010304402983 |
| cqc certificate | https://library.abb.com/d/CQC2018010304134049, https://library.abb.com/d/CQC2010010304402983 |
| csa certificate | https://library.abb.com/d/CSA_1033838_LR056745 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B01010 |
| ul listing card | https://library.abb.com/d/UL_E312527 |
| coil consumption | Holding at Max. Rated Control Circuit Voltage 50 Hz 7 V·AHolding at Max. Rated Control Circuit Voltage 50 Hz 2.8 WHolding at Max. Rated Control Circuit Voltage 60 Hz 7 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 2.8 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 210 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 210 V·A |
| gost certificate | https://library.abb.com/d/GOST_POCCFRME77B07175 |
| rohs information | https://library.abb.com/d/1SBD250803U1000 |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH75-25 (75 x 25 mm Mounting Rail) acc. to IEC 60715 |
| mechanical durability | 10 million |
| ambient air temperature | Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C |
| horsepower rating ul/csa | (120 V AC) Single Phase 5 hp(200 ... 208 V AC) Three Phase 20 hp(220 ... 240 V AC) Three Phase 25 hp(240 V AC) Single Phase 10 hp(440 ... 480 V AC) Three Phase 60 hp(550 ... 600 V AC) Three Phase 75 hp |
| environmental information | https://library.abb.com/d/1SBD250021E1002 |
| general use rating ul/csa | (600 V AC) 90 A |
| maximum breaking capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1300 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 630 A |
| rated operational voltage | Main Circuit 690 V |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250803U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001624, https://library.abb.com/d/2020980304001225 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Cable End 6 ... 16 mm2Rigid Cable 6 ... 25 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250820U1000 |
| short-circuit protective devices | gG Type Fuses 125 A |
| data sheet, technical information | https://library.abb.com/d/1SNC001003C0202 |
| mounting by screws (not supplied) | 2 x M6 screws placed diagonally |
| rated operational power ac-3 (pe) | (415 V) 37 kW(440 V) 37 kW(500 V) 37 kW(690 V) 37 kW(380 / 400 V) 30 kW(220 / 230 / 240 V) 18.5 kW |
| rated control circuit voltage (uc) | 50 Hz 48 ... 130 V60 Hz 48 ... 130 VDC Operation 48 ... 130 V |
| rated operational power ac-6b (pe) | (230 / 240 V) 40 °C, 50 / 60 Hz 25 kvar(230 / 240 V) 55 °C, 50 / 60 Hz 25 kvar(230 / 240 V) 70 °C, 50 / 60 Hz 23 kvar(400 / 415 V) 40 °C, 50 / 60 Hz 43 kvar(400 / 415 V) 70 °C, 50 / 60 Hz 39 kvar(400 / 415 V) 55 °C, 50 / 60 Hz 43 kvar(440 V) 40 °C, 50 / 60 Hz 47 kvar(440 V) 55 °C, 50 / 60 Hz 47 kvar(440 V) 70 °C, 50 / 60 Hz 42.5 kvar(500 / 550 V), 40 °C, 50 / 60 Hz 54 kvar(500 / 550 V) 55 °C, 50 / 60 Hz 54 kvar(500 / 550 V) 70 °C, 50 / 60 Hz 48.5 kvar(690 V) 40 °C, 50 / 60 Hz 74 kvar(690 V) 55 °C, 50 / 60 Hz 74 kvar(690 V) 70 °C, 50 / 60 Hz 67 kvar |
| rated operational current ac-1 (ie) | (690 V) 40 °C 115 A(690 V) 55 °C 95 A(690 V) 70 °C 80 A |
| rated operational current ac-3 (ie) | (415 V) 55 °C 65 A(440 V) 55 °C 65 A(500 V) 55 °C 55 A(690 V) 55 °C 43 A(380 / 400 V) 55 °C 65 A(220 / 230 / 240 V) 55 °C 65 |
| connecting capacity auxiliary circuit | Flexible with Cable End 0.75 ... 2.5 mm2Rigid Cable 1 ... 4 mm2 |
| maximum electrical switching frequency | (AC-1) 300 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 300 cycles per hour |
| maximum mechanical switching frequency | 300 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 8 kV |
| resistance to shock acc. to iec 60068-2-27 | Closed, Shock Direction: B1 10 gOpen, Shock Direction: B1 5 gShock Direction: A 20 gShock Direction: B2 15 gShock Direction: C1 20 gShock Direction: C2 20 g |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 125 A |
| rated short-time withstand current low voltage (icw) | at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 650 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 135 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 250 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1000 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 370 A |
