Product type: GA75-10-00 380-400V 50Hz / 400-415V 60Hz

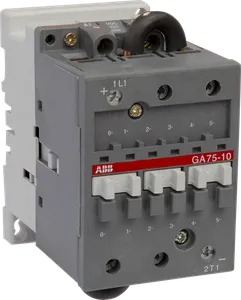

GA75-10-00 380-400V 50Hz / 400-415V 60Hz Contactor
Description
GA75 contactors are designed for DC circuit switching. Arc suppression is more difficult in DC than in AC. To choose a contactor, it is necessary to know the current and voltage to be broken as well as the L/R time constant of the power circuit to be controlled. GA75 contactors are of the block type design. - Main poles: the contactors are fitted with arc chutes with permanent magnets specially designed for DC breaking. The three contactor paths are arranged in series via two supplied and fitted insulated connections (25 mm2). The GA75 are "single-pole" devices for which the connection polarities indicated next to the connection terminals must be respected. Furthermore, they are marked 1L1 for the positive terminal and 2T1 for the negative terminal. - Control circuit: AC operated with laminated magnet circuit - Accessories: a wide range of accessories is available
Read More
- Low Voltage Products and Systems
- Control Products
- Contactors
- Block Contactors
| Thomas Hoffmann |
| +49 305 201 4443 |
| sales@zwodltd.com |
    |
     |
| Price: Please send request |
| Request Lead Time: app. 1 Day |
| Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin |
| Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025 |
- ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBL411025R8500.
- See all ZWOD Sales and Logistics Ltd ABB products.
Multiples Of: 1
Product Specifications
| Product Attribute | Attribute Value |
|---|---|
| Weight | 1.22 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | |
| Dimensions (WxHxD) | 70x132x108 mm |
| EAN code | 3471522099853 |
| Product group | SB |
| eclass | V11.0 : 27371018 |
| etim 4 | EC002552 - Power contactor, DC switching |
| etim 5 | EC002552 - Power contactor, DC switching |
| etim 6 | EC002552 - Power contactor, DC switching |
| etim 7 | EC002552 - Power contactor, DC switching |
| etim 8 | EC002552 - Power contactor, DC switching |
| unspsc | 39121529 |
| rohs status | Following EU Directive 2011/65/EU |
| operate time | Between Coil De-energization and NO Contact Opening 4 ... 11 msBetween Coil Energization and NO Contact Closing 8 ... 27 ms |
| terminal type | Screw Terminals |
| cb certificate | https://library.abb.com/d/CB_CN45325 |
| ccc certificate | https://library.abb.com/d/CCC_2018010304129268 |
| cqc certificate | https://library.abb.com/d/CQC2018010304129268 |
| csa certificate | https://library.abb.com/d/CSA_1033838_LR056745 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B03599 |
| ul listing card | https://library.abb.com/d/UL_E319322 |
| coil consumption | Average Holding Value 50 / 60 Hz 18 V·AAverage Pull-in Value 50 Hz 190 V·AAverage Pull-in Value 60 Hz 180 V·AHolding at Max. Rated Control Circuit Voltage 50 Hz 18 V·AHolding at Max. Rated Control Circuit Voltage 50 Hz 5.5 WHolding at Max. Rated Control Circuit Voltage 60 Hz 18 V·AHolding at Max. Rated Control Circuit Voltage 60 Hz 5.5 WPull-in at Max. Rated Control Circuit Voltage 50 Hz 180 V·APull-in at Max. Rated Control Circuit Voltage 60 Hz 210 V·A |
| rohs information | https://library.abb.com/d/1SBD250807U1000 |
| climatic withstand | acc. to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 specification II |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP10 |
| mounting on din rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH75-25 (75 x 25 mm Mounting Rail) acc. to IEC 60715 |
| mechanical durability | 10 million |
| ambient air temperature | Close to Contactor for Storage -60 ... +80 °CNear Contactor for Operation in Free Air (0.85 ... 1.1 Uc) -40 ... 55 °CNear Contactor for Operation in Free Air (Uc) -40 ... 70 °C |
| environmental information | https://library.abb.com/d/1SBD250038E1000 |
| general use rating ul/csa | (1000 V DC) 35 A(440 V DC) 100 A(600 V DC) 75 A |
| rated operational voltage | Main Circuit 1000 V DC |
| number of main contacts nc | 0 |
| number of main contacts no | 3 |
| object classification code | Q |
| rated insulation voltage (ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250807U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001625 |
| number of auxiliary contacts nc | 0 |
| number of auxiliary contacts no | 0 |
| connecting capacity main circuit | Flexible with Cable End 6 ... 16 mm2Rigid Cable 6 ... 25 mm2 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250824U1000 |
| maximum operating voltage ul/csa | Main Circuit 1000 V DC |
| short-circuit protective devices | gG Type Fuses 160 A |
| data sheet, technical information | https://library.abb.com/d/1SBC100122C0202_Ch02 |
| mounting by screws (not supplied) | 2 x M6 screws placed diagonally |
| rated control circuit voltage (uc) | 50 Hz 380 ... 400 V60 Hz 400 ... 415 V |
| rated operational current dc-1 (ie) | (1000 V) 1-Pole, 40 °C 35 A(1000 V) 1-Pole, 55 °C 35 A(1000 V) 1 Pole, 70 °C 35 A(110 V) 1-Pole, 40 °C 120 A(110 V) 1-Pole, 55 °C 100 A(110 V) 1-Pole, 70 °C 85 A(220 V) 1-Pole, 40 °C 120 A(220 V) 1-Pole, 55 °C 100 A(220 V) 1-Pole, 70 °C 85 A(440 V) 1-Pole, 40 °C 100 A(440 V) 1-Pole, 55 °C 100 A(440 V) 1-Pole, 70 °C 85 A(600 V) 1-Pole, 40 °C 75 A(600 V) 1-Pole, 55 °C 75 A(600 V) 1-Pole, 70 °C 75 A(72 V) 1-Pole, 40 °C 120 A(72 V) 1-Pole, 55 °C 100 A(72 V) 1-Pole, 70 °C 85 A |
| rated operational current dc-3 (ie) | (110 V) 1-Pole, 40 °C 120 A(110 V) 1-Pole, 55 °C 100 A(220 V) 1-Pole, 40 °C 100 A(220 V) 1-Pole, 55 °C 100 A(440 V) 1-Pole, 40 °C 85 A(440 V) 1-Pole, 55 °C 85 A(72 V) 1-Pole, 40 °C 120 A(72 V) 1-Pole, 55 °C 100 A |
| rated operational current dc-5 (ie) | (110 V) 1-Pole, 40 °C 85 A(110 V) 1-Pole, 55 °C 85 A(220 V) 1-Pole, 40 °C 85 A(220 V) 1-Pole, 55 °C 85 A(440 V) 1-Pole, 40 °C 35 A(440 V) 1-Pole, 55 °C 35 A(72 V) 1-Pole, 40 °C 85 A(72 V) 1-Pole, 55 °C 85 A |
| connecting capacity auxiliary circuit | Flexible with Cable End 0.75 ... 2.5 mm2Rigid Cable 1 ... 4 mm2 |
| maximum electrical switching frequency | 300 cycles per hour |
| maximum mechanical switching frequency | 3600 cycles per hour |
| maximum operating altitude permissible | Without Derating 3000 m |
| rated impulse withstand voltage (uimp) | 8 kV |
| conventional free-air thermal current (ith) | acc. to IEC 60947-4-1, Open Contactors q = 40 °C 125 A |
| connecting terminals (delivered in open position) main poles | M 6 (+,-) pozidriv 2 screws with 1x (13 x 10 mm) connector |
