| Weight | 0.05 KG / psc. |
| Commodity number | 85369010 |
| Country of origin | CZ |
| Dimensions (WxHxD) | 0.012x0.074x0.062 m |
| EAN code | 3471522121073 |
| Product group | SB |
| cn8 | 8538 90 99 |
| eclass | V11.0 : 27371302 |

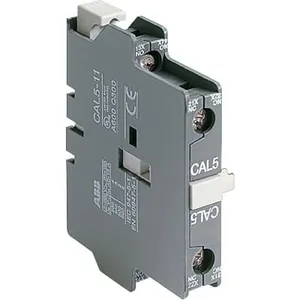

| etim 7 | EC000041 - Auxiliary contact block |
| etim 8 | EC000041 - Auxiliary contact block |
| unspsc | 39120000 |
| remarks | 100 |
| part type | New |
| power loss | at Rated Operating Conditions per Pole 0.1 W |
| rohs status | Following EU Directive 2011/65/EU |
| suitable for | |
| mounting type | Side Mounting |
| terminal type | Screw Terminals |
| weee category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| cb certificate | https://library.abb.com/d/CB_SE_30113 |
| ul certificate | https://library.abb.com/d/UL_071301E48139 |
| weee b2c / b2b | Business To Business |
| ccc certificate | https://library.abb.com/d/CCC_2013010304604041, https://library.abb.com/d/CCC_2004010305133985 |
| cqc certificate | https://library.abb.com/d/CQC2013010304604041 |
| csa certificate | https://library.abb.com/d/CSA_1033838 |
| eac certificate | https://library.abb.com/d/EAC_RU C-FR ME77 B03391 |
| gost certificate | https://library.abb.com/d/GOST_POCCFRME77B07175 |
| rina certificate | https://library.abb.com/d/RINA_ELE172319XG001 |
| rohs information | https://library.abb.com/d/1SBD250809U1000 |
| mounting position | Side |
| pilot duty ul/csa | A600Q300 |
| e-number (finland) | 3709188 |
| degree of protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| mechanical durability | 10 million3 million2 million |
| technical information | AUXILIARY SWITCH |
| environmental information | https://library.abb.com/d/1SBD250138E1000 |
| rated operational voltage | Auxiliary Circuit 690 V |
| minimum switching capacity | A9 ... A75 17 / 5 VLT4KA95 ... AF750 24 / 50 VLT4K |
| object classification code | K |
| rated insulation voltage (ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250809U1000 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980304001626 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 1 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250826U1000 |
| short-circuit protective devices | Auxiliary Circuit - gG Type Fuses 10 A |
| data sheet, technical information | https://library.abb.com/d/1SBC100122C0202_Ch04 |
| rated operational current ac-15 (ie) | (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(380 / 400 V) 3 A |
| rated short-time withstand current low voltage (icw) | for 0.1 s 140 Afor 1 s 100 A |
