ABB

1SBN030113R1000

Name: 1SBN030113R1000
Brand: ABB
Availability: PreOrder

Product type: VEM4K

VEM4K Mechanisch - Elektrische Verriegelung passend für AF09(K) -AF38(K)

Description

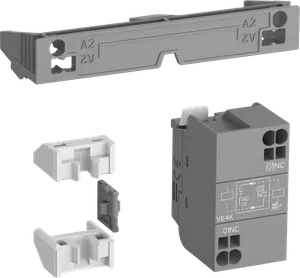

Elektrisch- mechanische Verriegelung VEM4 für die Verriegelung zweier AF-Schütze. Der VEM4-Satz beinhaltet eine VM4 mechanische Verriegelungseinheit mit 2 Befestigungsklipps (BB4) und einen VE4 elektrischen Verriegelungssatz mit A2-A2-Verbindung. Das Befestigen des elektrischen Verriegelungssatzes an der Vorderseite des Schützes verbindet die beiden eingebauten Öffner-Verriegelungskontakte mit den beiden Spulen. Der VE4 Block muss mit einer A2-A2-Verbindung verwendet werden, um den elektrischen Schaltplan zu berücksichtigen.

Low Voltage Products and Systems
Control Products
Contactors
Block Contactors Accessories

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBN030113R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.03 KG / psc.
Commodity number	85389099
Country of origin	PL
Dimensions (WxHxD)	0.025x0.043x0.032 m
EAN code	3471523131392
Product group	SB
cn8	8538 90 99
eclass	V11.0 : 27371303
etim 7	EC001044 - Mechanic interlock for switch
etim 8	EC001044 - Mechanic interlock for switch
unspsc	39120000
rohs status	Following EU Directive 2011/65/EU
suitable for
terminal type	Push-in Spring Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
cb certificate	https://library.abb.com/d/CB_SE-93053
weee b2c / b2b	Business To Business
abs certificate	https://library.abb.com/d/ABS_20-2060694-PDA
cqc certificate	https://library.abb.com/d/CQC2013010304651497
rohs information	https://library.abb.com/d/1SBD250007U1000
e-number (finland)	3708089
eplan catalog tree	Electrical engineering / Electrically-operated mechanical devices / General
degree of protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
mechanical durability	5 million
wire stripping length	Auxiliary Circuit 10 mm
rated insulation voltage (ui)	acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V
declaration of conformity - ce	https://library.abb.com/d/1SBD250007U1000
declaration of conformity - ccc	https://library.abb.com/d/2020980304001259
number of auxiliary contacts nc	2
number of auxiliary contacts no	0
declaration of conformity - ukca	https://library.abb.com/d/1SBD250038U1000
maximum operating voltage ul/csa	Auxiliary Circuit 500 V AC/DC
rated impulse withstand voltage (uimp)	6 kV
