ABB

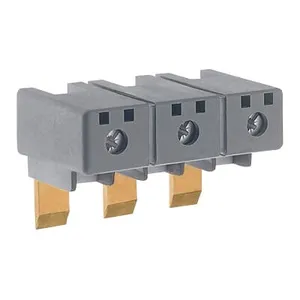

1SBN073508R1000

Product type: LD75

LD75 Klemmenblock Anschlußerweiterung, für A/AE50-A/AE75

Datasheet

Description

Mit dem Klemmenblock LD75 kann die Anschlusskapazität des Schützes, an das er angebaut wird, erhöht werden. Außerdem ermöglicht dieser Klemmenblock die Vorbereitung der Verdrahtung vor dem endgültigen Anschluss an das Schütz. Die 3-poligen Klemmenblöcke LD75 sind mit Buchsenklemmen ausgerüstet. Sie passen an Schütze der Baugröße AF50 bis AF75 und erhöhen die Anschlußkapazität auf Starr: 1x 6...50 mm² / 2x 6...25 mm² Flexibel mit Aderendhülse: 1x 6..35 mm² / 2x 6...16 mm²

Low Voltage Products and Systems
Control Products
Contactors
Block Contactors Accessories

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBN073508R1000.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.115 KG / psc.
Commodity number	85389099
Country of origin	BG
Dimensions (WxHxD)	0.063x0.04x0.041 m
EAN code	3471522199041
Product group	SB
cn8	8536 90 10
eclass	V11.1 : 27371392
etim 7	EC002498 - Accessories for low-voltage switch technology
etim 8	EC002498 - Accessories/spare parts for low-voltage switch technology
unspsc	39120000
rohs status	No declaration needed
suitable for	A50A63A75AE50AE63AE75AX50AX65AX80
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
weee b2c / b2b	Business To Business
gost certificate	https://library.abb.com/d/GOST_POCCFRME77B07175
rina certificate	https://library.abb.com/d/RINA_ELE172319XG001
rohs information	https://library.abb.com/d/1SBC101061D0201
tightening torque	Cable Lug 4 N·m
rated insulation voltage (ui)	acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V
declaration of conformity - ce	https://library.abb.com/d/1SBD250835U1000
declaration of conformity - ukca	https://library.abb.com/d/1SBD250836U1000
data sheet, technical information	https://library.abb.com/d/1SBC100122C0202_Ch04
