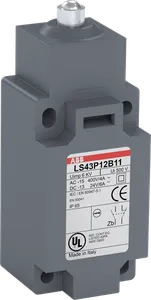

| Weight | 0.14 KG / psc. |
| Commodity number | 85364900 |
| Country of origin | IT |
| Dimensions (WxHxD) | 120x45x45 mm |
| EAN code | 3471522010605 |
| Product group | SF |
| eclass | V11.0 : 27272601 |
| etim 6 | EC000030 - End switch |
| etim 7 | EC000030 - End switch |
| etim 8 | EC000030 - End switch |
| unspsc | 39121500 |
| rohs status | Following EU Directive 2011/65/EU |
| actuator type | steel ball plunger |
| mounting type | 40 mm (EN 50041) |
| actuating force | Minimum Force acc. to IEC 60947-5-1 22 N |
| actuation speed | acc. to IEC 60947-5-1 Max. 0.5 m/s |
| cqc certificate | https://library.abb.com/d/CQC2004010305127663 |
| cul certificate | https://library.abb.com/d/9AKK107991A7379 |
| housing material | Plastic |
| rohs information | https://library.abb.com/d/1SBD251097E1000 |
| terminal marking | according to EN 50013 |
| pilot duty ul/csa | A600Q600 |
| climatic withstand | according to IEC 68-2-3 and salty mist according to IEC 68-2-11 |
| connecting capacity | Bar AWG 20 ... AWG 14 mm2Bar 0.5 ... 2.5 mm2 |
| rated frequency (f) | Supply Circuit 50 / 60 Hz |
| degree of protection | acc. to IEC 60529 IP65 |
| operating head shape | B shape acc. EN 50041 |
| mechanical durability | 15 million |
| ambient air temperature | Operation -25 ... +70 °CStorage -30 ... +80 °C |
| angular head adjustment | adjustable head every 90° |
| movement to be detected | on end |
| angular lever adjustment | none |
| object classification code | B |
| resistance between contacts | 25 E45 |
| rated insulation voltage (ui) | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 Vacc. to UL/CSA 600 V |
| declaration of conformity - ce | https://library.abb.com/d/1SBD250883U1000 |
| flammability according to ul94 | V-0 |
| declaration of conformity - ccc | https://library.abb.com/d/2020980305001785 |
| number of auxiliary contacts nc | 1 |
| number of auxiliary contacts no | 1 |
| declaration of conformity - ukca | https://library.abb.com/d/1SBD250886U1000 |
| short-circuit protective devices | gG Type Fuses 10 A |
| data sheet, technical information | https://library.abb.com/d/1SBC141160C0201 |
| mounting by screws (not supplied) | 2 or 4 x M5 screws |
| maximum mounted auxiliary contacts | 1 NO, 1 NC |
| rated operational current ac-15 (ie) | (230 V AC) 3.1 A(400 V) NC 1.8(24 V) 10 A(130 V) 5.5 A(240 V) 3 A |
| rated operational current dc-13 (ie) | (24 V) 2.8 A / 67.2 W(110 V) 0.6 / 66 A(250 V) 0.27 / 67.5 A |
| maximum electrical switching frequency | 3600 cycles per hour |
| number and type of bottom cable glands | ISO 20 cable gland |
| rated impulse withstand voltage (uimp) | 6 kV |
| resistance to shock acc. to iec 60068-2-27 | Half-sine Pulse for 11 ms, No Change in Contact Position 50 m/s2 |
| conventional free-air thermal current (ith) | acc. to IEC 60947-5-1, q = 40 °C 10 A |
| electrical shock protection acc. to iec 536 | Double insulation - Class II |
| positive opening operation of nc contact(s) | Yes |
| contact element form (acc. to iec 60947-5-1) | Zb |
| resistance to vibrations acc. to iec 60068-2-6 | 25g (10 to 500 Hz) no change in position of contacts greater than 100 μs |
| consistency (measured over 1 million operations) | 0.1 mm |
| connecting terminals (delivered in open position) | M3.5 (+,-) pozidriv 2 screw with cable clamp |
| positive opening operation force (direct opening action) | Minimum Force acc. to IEC 60947-5-1 66 NEW |
| action type of the contact element (acc. to iec 60947-5-1) | Snap action contacts |
