ABB

1SBV011941R1211

Product type: LS32M41B11

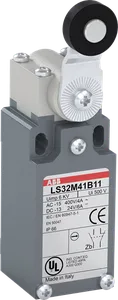

LS32M41B11 Limit Switch

Datasheet

RoHS Compliant

Description

LS32M41B11 is a 30 mm wide, standard Limit Switch made of zinc alloy material (Zamak), with 2 mounting holes at the top, 1 ISO M16x1.5 cable entry on the bottom, plastic roller lever (Ø18 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts LS32M41B11

Low Voltage Products and Systems
Control Products
Sensors
Limit Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SBV011941R1211.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.178 KG / psc.
Commodity number	85364900
Country of origin	IT
Dimensions (WxHxD)	54x118x32 mm
EAN code	3471522621436
Product group	SF
eclass	V11.0 : 27272601
etim 6	EC000030 - End switch
etim 7	EC000030 - End switch
etim 8	EC000030 - End switch
unspsc	39121500
b10d value	30 Millions operations
rohs status	Following EU Directive 2011/65/EU
actuator type	plastic roller lever (Ø18 mm)
mounting type	30 mm (EN 50047)
cqc certificate	https://library.abb.com/d/CQC2004010305127663
cul certificate	https://library.abb.com/d/9AKK107991A7379
housing material	Metal
rohs information	https://library.abb.com/d/1SBD251097E1000
pilot duty ul/csa	A600Q600
degree of protection	acc. to IEC 60529 IP66
mechanical durability	0 cycle
ambient air temperature	Operation -25 ... +70 °CStorage -30 ... +80 °C
object classification code	B
rated insulation voltage (ui)	acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 Vacc. to UL/CSA 600 V
declaration of conformity - ce	https://library.abb.com/d/1SBD250883U1000
declaration of conformity - ccc	https://library.abb.com/d/2020980305001785
declaration of conformity - ukca	https://library.abb.com/d/1SBD250886U1000
short-circuit protective devices	gG Type Fuses 10 A
data sheet, technical information	https://library.abb.com/d/1SBC141160C0201
maximum mounted auxiliary contacts	1 NO, 1 NC
rated operational current ac-15 (ie)	(230 V AC) 3.1 A(400 V) NC 4(24 V) 10 A(130 V) 5.5 A(240 V) 3 A
rated operational current dc-13 (ie)	(24 V) 6 A(110 V) 0.6 A(125 V) 0.55 A(250 V) 0.4 A
maximum electrical switching frequency	(AC-15) 3600 cycles per hour(DC-13) 3600 cycles per hour
number and type of bottom cable glands	1 x M16x1.5 - Bottom
rated impulse withstand voltage (uimp)	6 kV
conventional free-air thermal current (ith)	acc. to IEC 60947-5-1, q = 40 °C 10 A
action type of the contact element (acc. to iec 60947-5-1)	Snap Action Simultaneous
