Product type: OT400DLAA3CZ

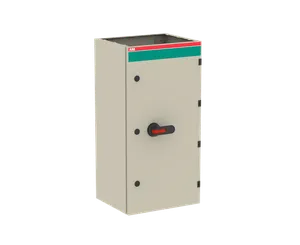

OT400DLAA3CZ Enclosed change-over switch

Datasheet

Description

The transfer switch disconnector is using a galvanised steel enclosure, with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallell cables. Cable entry types can be blank , ring-flange or C-flange type (FL21). Cable entry plates needs to be added. There are different cable configurations, like top/bottom or bottom/bottom. The handle is padlockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.

Low Voltage Products and Systems
Enclosed Switches
Enclosed Change-over and Transfer Switches
Enclosed Manual Change-over Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SCA022294R8220.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	22.01 KG / psc.
Commodity number	85363090
Country of origin	FI
Dimensions (WxHxD)	400x800x330 mm
EAN code	6417019083131
Product group	FA
eclass	V11.1 : 27371403
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
standards	IEC 60947-1, -3
power loss	at Rated Operating Conditions per Pole 10 W
handle type	Pistol handle
rohs status	Following EU Directive 2011/65/EU
handle color	Black
weee category	4. Large Equipment (Any External Dimension More Than 50 cm)
number of poles	3
pollution degree	3
rohs information	https://library.abb.com/d/1SCC340049D0202
enclosure material	Steel sheet
mechanical drawings	https://library.abb.com/d/OTKM804033PO.stp
cable entry position	Up/Down
degree of protection	acc. to IEC 60529 IP65
cable outlets per side	Open / Open
rated operational voltage	Main Circuit 1000 V
mounted auxiliary contacts	0 NO, 0 NC
object classification code	Q
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 1000 V
declaration of conformity - ce	https://library.abb.com/d/1SCC340025D2704
connecting capacity main circuit	Hole Diameter 10 mmScrew Clamp / PE Terminal 4pcs, 25...120 mm2
data sheet, technical information	https://library.abb.com/d/1SCC340015C0201
maximum mounted auxiliary contacts	4 NO, 4 NC
conventional thermal current (ithe)	Fully Enclosed 400 A
rated operational power ac-23a (pe)	(380 ... 415 V) 230 kW(500 V) 280 kW(690 V) 400 kW
rated operational current ac-22a (ie)	(380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
rated operational current ac-23a (ie)	(380 ... 415 V) 400 A(500 V) 400 A(690 V) 400 A
rated impulse withstand voltage (uimp)	15 kV
rated short-circuit making capacity (icm)	(1000 V AC) 65 kA
rated short-time withstand current low voltage (icw)	for 1 s 15 kA
