ABB

1SCA022381R2110

Product type: OHB145J12

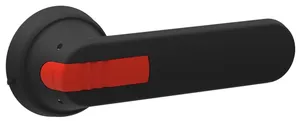

OHB145J12 HANDLE

Datasheet

RoHS Compliant

Description

OHB145J12, pistol handle for base and DIN-rail mounted switches. Suitable for shaft diameter 12 mm. Color black, handle length 145 mm. IP65, NEMA 1, 3R, 12, padlockable with three padlocks in OFF-position, door interlock in ON-position. Screw fixing from the back side of the handle. No screws on the front ensures double insulation. OHB145J12

Low Voltage Products and Systems
Switches
DC Switch-Disconnectors
Low Voltage Products and Systems
Switches
Switch Disconnectors
Low Voltage Products and Systems
Switches
Switch Fuses
Accessories for Switch Fuses

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SCA022381R2110.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.175 KG / psc.
Commodity number	85389099
Country of origin	EE
Dimensions (WxHxD)	70x50x180 mm
EAN code	6417019124353
Product group	FA
color	Black
eclass	V11.1 : 27370414
etim 5	EC000229 - Handle for power circuit breaker
etim 6	EC000229 - Handle for power circuit breaker
etim 7	EC000229 - Handle for power circuit breaker
etim 8	EC000229 - Handle for power circuit breaker
unspsc	31162801
lock type	Yes
handle type	Pistol
rohs status	Following EU Directive 2011/65/EU
handle color	Black
handle length	145 mm
weee category	Product Not in WEEE Scope
shaft diameter	12 mm
rohs information	https://library.abb.com/d/1SCC390030D2704
e-number (sweden)	3171347
special functions	J12
e-number (finland)	3601987
mechanical drawings	https://library.abb.com/d/1SCC390089F0002, https://library.abb.com/d/OH_145J_palikka.igs
degree of protection	IP65
object classification code	N/A
declaration of conformity - ce	https://library.abb.com/d/1SCC390030D2704
data sheet, technical information	https://library.abb.com/d/1SCC301020C0201
