Product type: EOT16U3P3-S1

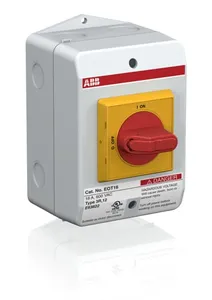

EOT16U3P3-S1 Enclosed Disconnect Switch

Datasheet

Description

Enclosed Switch Disconnector, 3-p. Max. Horse power rating at three phase 480V 10HP. General purpose current rating 16A. Plastic enclosure, NEMA Type 3R Rainproof, 12 Indoor, Selector handle. Interlocked cover. Defeatable interlocking.
