ABB

1SCA022823R8840

Product type: EOT45U3M3-P

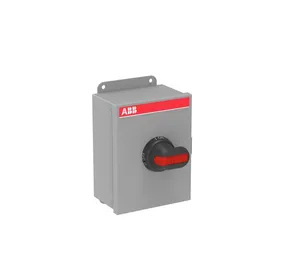

EOT45U3M3-P Enclosed Disconnect Switch

Datasheet

Description

Enclosed Switch Disconnector, 3-p. Max. Horse power rating at three phase 480V 30HP. General purpose current rating 60A. Steel sheet enclosure, NEMA Type 3R Rainproof, 12 Indoor, Pistol handle. Interlocked cover. Defeatable interlocking.

Low Voltage Products and Systems
Enclosed Switches
Enclosed Disconnect Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SCA022823R8840.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2.8 KG / psc.
Commodity number	85363030
Country of origin	MX
Dimensions (WxHxD)	159.5x241.3x108.7 mm
EAN code	6417019282411
Product group	FA
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
unspsc	39122233
standards	IEC 60947-1, -3 / UL 508
handle type	Pistol handle
handle color	Black
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
enclosure type	NEMA Type 3R Rainproof, 12 Indoor
number of poles	3
pollution degree	3
tightening torque	acc. IEC 60947-1 2 N·m
enclosure material	Steel sheet
mechanical drawings	https://library.abb.com/d/EOTK3241510PBL.igs
ampere rating ul/csa	60 A
cable entry position	Up/Down
degree of protection	acc. to IEC 60529 IP54
mechanical durability	20000
cable outlets per side	Blank / Blank
horsepower rating ul/csa	(220 ... 240 V AC) Three Phase 15 Hp(480 V AC) 30 Hp(600 V AC) 30 Hp
tightening torque ul/csa	Main Circuit 18 in·lb
mounted auxiliary contacts	0 NO, 0 NC
object classification code	Q
position of line terminals	Top In - Bottom Out
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 750 V
declaration of conformity - ce	https://library.abb.com/d/1CC340035D2701
connecting capacity main circuit	Screw Clamp 1.5...35 mm2Screw Clamp / PE Terminal 1pcs, 0.5...16 mm2
maximum operating voltage ul/csa	600 V
data sheet, technical information	https://library.abb.com/d/1SCC340016C0201
conventional thermal current (ithe)	60 A
rated operational current ac-22a (ie)	(380 ... 415 V) 63 A(690 V) 63 A
rated operational current ac-23a (ie)	(690 V) 63 A(690 V) 380415V20 A
rated short-circuit making capacity (icm)	(690 V AC) 1.4 kA
rated short-time withstand current low voltage (icw)	for 1 s 1 kA
