ABB

1SCA022823R9140

Product type: EOT45U3S4-P

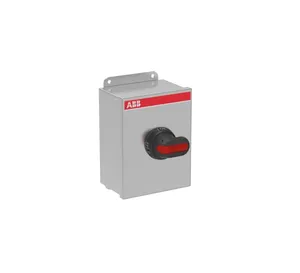

EOT45U3S4-P Enclosed Disconnect Switch

Datasheet

Description

Enclosed Switch Disconnector, 3-p. Max. Horse power rating at three phase 480V 30HP. General purpose current rating 60A. Stainless steel enclosure, NEMA Type 4/4X Watertight, Pistol handle. Interlocked cover. Defeatable interlocking.

Low Voltage Products and Systems
Enclosed Switches
Enclosed Disconnect Switches

Contact Person
Thomas Hoffmann
+49 305 201 4443

sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 4-5 Weeks Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2025

ZWOD Sales and Logistics Ltd specializes in hard-to-find parts. Please send request a quote and save on 1SCA022823R9140.
See all ZWOD Sales and Logistics Ltd ABB products.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2.8 KG / psc.
Commodity number	85363030
Country of origin	MX
Dimensions (WxHxD)	159.5x241.3x108.7 mm
EAN code	6417019282442
Product group	FA
etim 5	EC000216 - Switch disconnector
etim 6	EC000216 - Switch disconnector
etim 7	EC000216 - Switch disconnector
etim 8	EC000216 - Switch disconnector
unspsc	39122233
standards	IEC 60947-1, -3 / UL 508
handle type	Pistol handle
handle color	Black
terminal type	Screw Terminals
weee category	5. Small Equipment (No External Dimension More Than 50 cm)
enclosure type	NEMA Type 4/4X Watertight
number of poles	3
pollution degree	3
tightening torque	acc. IEC 60947-1 2 N·m
enclosure material	Stainless steel
mechanical drawings	https://library.abb.com/d/EOTK4241510PBL.stp
ampere rating ul/csa	60 A
cable entry position	Up/Down
degree of protection	acc. to IEC 60529 IP65
mechanical durability	20000
cable outlets per side	Blank / Blank
horsepower rating ul/csa	(220 ... 240 V AC) Three Phase 15 Hp(480 V AC) 30 Hp(600 V AC) 30 Hp
tightening torque ul/csa	Main Circuit 18 in·lb
mounted auxiliary contacts	0 NO, 0 NC
object classification code	Q
position of line terminals	Top In - Bottom Out
rated insulation voltage (ui)	acc. to IEC/EN 60664-1 750 V
declaration of conformity - ce	https://library.abb.com/d/1CC340035D2701
connecting capacity main circuit	Screw Clamp 1.5...35 mm2Screw Clamp / PE Terminal 1pcs, 0.5...16 mm2
maximum operating voltage ul/csa	600 V
data sheet, technical information	https://library.abb.com/d/1SCC340016C0201
conventional thermal current (ithe)	60 A
rated operational current ac-22a (ie)	(380 ... 415 V) 63 A(690 V) 63 A
rated operational current ac-23a (ie)	(690 V) 63 A(690 V) 380415V20 A
rated short-circuit making capacity (icm)	(690 V AC) 1.4 kA
rated short-time withstand current low voltage (icw)	for 1 s 1 kA
