1SCA103918R1001
ABB

1SCA103918R1001

Product type: OT2000E13CP

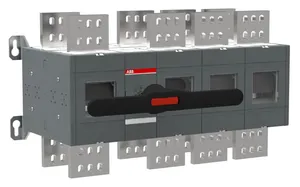

OT2000E13CP CHANGE-OVER SWITCH

RoHS Compliant

Description

2000A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked. OT2000E13CP
Read More
  • Low Voltage Products and Systems
  • Switches
  • Change-over and Transfer Switches
  • Manual Change-over Switches
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 6-9 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight69.55 KG / psc.
Commodity number85365080
Country of originFI
Dimensions (WxHxD)444x385x714 mm
EAN code6417019382876
Product groupFA
eclass V11.1 : 27371403
etim 5 EC000216 - Switch disconnector
etim 6 EC000216 - Switch disconnector
etim 7 EC000216 - Switch disconnector
etim 8 EC000216 - Switch disconnector
power loss 55 W
handle type Handle and shaft included
handle color Black
mounting type Base mounting
weee category 4. Large Equipment (Any External Dimension More Than 50 cm)
operating mode Front operated
terminal width 100 mm
number of poles 4
transition type Open
fourth pole type Switched - Simultaneous Function
pollution degree 3
rohs information https://library.abb.com/d/1SCC301149D0202
tightening torque acc. IEC 60947-1 50 ... 75 N·m
e-number (finland) 3650327
degree of protection Front IP20
fourth pole position Right Side
distance between phases Standard
environmental information https://library.abb.com/d/1SCC303050D0201
rated operational voltage 1000 V
object classification code Q
position of line terminals Top In - Bottom Out, Bottom In - Top Out
switches operating mechanism Mechanism Between the Poles13 (Between the Poles)
rated insulation voltage (ui) 1000 V
declaration of conformity - ce https://library.abb.com/d/1SCC303022D0201
data sheet, technical information https://library.abb.com/d/1SCC303003C0201
rated operational current ac-21b (ie) (380 ... 415 V) 2000 A(500 V) 2000 A
rated operational current ac-31b (ie) (380 ... 415 V) 2000 A
rated operational current ac-33b (ie) (380 ... 415 V) 2000 A
rated impulse withstand voltage (uimp) 12 kV
conventional free-air thermal current (ith) q = 40 °C 2000 A
rated short-time withstand current low voltage (icw) for 1 s 55 kiloampere rms
